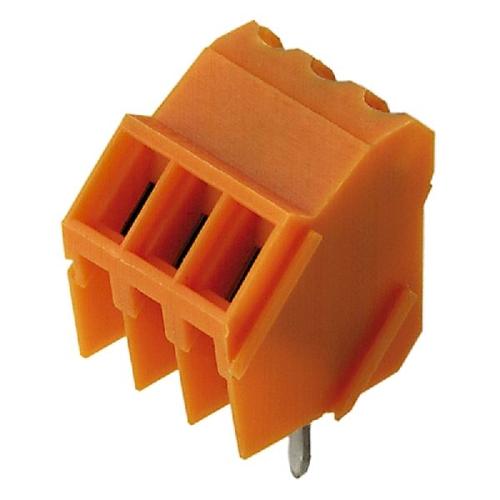

1845220000

Specifications

Number Of Levels

1

Safety Approval

UL; VDE; CSA

Contact Material Plating

Copper Alloy - Tin Plated

Insulation Materials

Nylon

RoHS Durumu

RoHS Compliant

Wire Gauge Max

28 AWG

Gerilim

300V

Stripping Length

5mm

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-50°C~100°C

Sıra Sayısı

1

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Interlocking (Side)

Number Of Ways

4

Radyasyon Dayanımı

No

Seri

Omnimate LM

Mating Orientation

45° (135°) Angle with Board

Flammability Rating

UL94 V-2

Montaj

Through Hole

Wire Gauge

14-28 AWG

Wirecable Gauge

28 AWG

Wire Gauge Min

14 AWG

Nominal Gerilim

300V

Number Of Decks

1

Parça Durumu

Obsolete

Yayın Yılı

2015

Torquescrew

0.2-0.25 Nm (1.7-2.2 Lb-In)

Ambalaj

Bulk

Number Of Positions Per Level

4

Kurşunsuz Kodu

yes

Akım Değeri

10A

Wire Termination

Screw - Clamping Yoke, Tension Sleeve

Hole Diameter

1.3 mm

Montaj Tipi

Through Hole

Contact Plating

Tin

Onay Kuruluşu

CSA, UR

Terminal

Screw

ECCN Kodu

EAR99
