Volume pricing
- 1+ pcs$3.68
- 10+ pcs$3.47
- 100+ pcs$3.28
- 500+ pcs$3.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

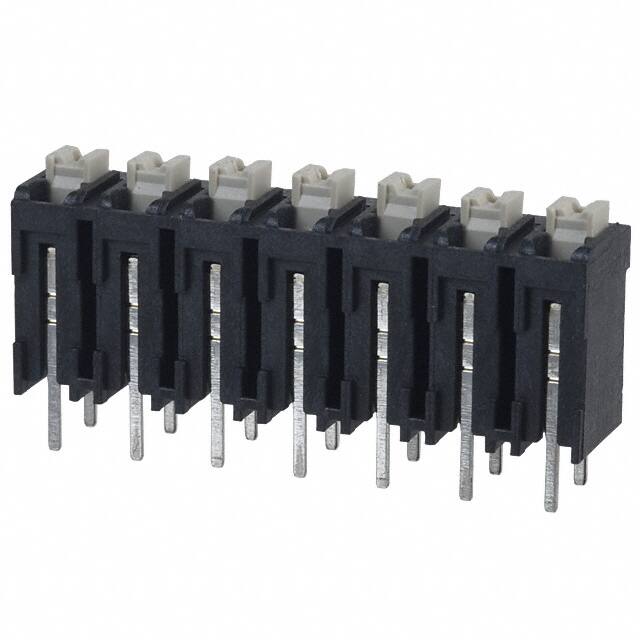

Specifications
- Parça Durumu
- Obsolete
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Wire Termination
- Screwless - Push Button Clamp
- Genişlik
- 8.5mm
- Montaj Tipi
- Through Hole
- Wire Gauge Min
- 16 AWG
- Number Of Decks
- 1
- Renk
- Black
- Nominal Gerilim
- 300V
- Mating Orientation
- Vertical with Board
- Montaj
- Through Hole
- Radyasyon Dayanımı
- No
- Number Of Levels
- 1
- Pitch
- 0.197 5.00mm
- Yükseklik
- 14.3mm
- Orientation
- Straight
- Sıra Sayısı
- 1
- Terminal
- Screwless
- Fastening Method
- PUSH-ON
- Uzunluk
- 34.2mm
- Safety Approval
- UL; VDE; CSA
- Wire Gauge
- 16-24 AWG
- Yayın Yılı
- 2004
- Seri
- Omnimate LSF-SMT
- Contact Plating
- Tin
- Additional Feature
- GLASS FILLED LCP, 94V-0
- Contact Material Plating
- Copper Alloy - Tin Plated
- Ambalaj
- Tube
- Hole Diameter
- 1.1 mm
- Flammability Rating
- UL94 V-0
- Akım
- 12A
- Akım Değeri
- 10A
- Nem Hassasiyeti (MSL)
- Not Applicable
- Wire Gauge Max
- 24 AWG
- RoHS Durumu
- RoHS Compliant
- Stripping Length
- 8mm
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 11 Weeks
- Number Of Contacts
- 7
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
