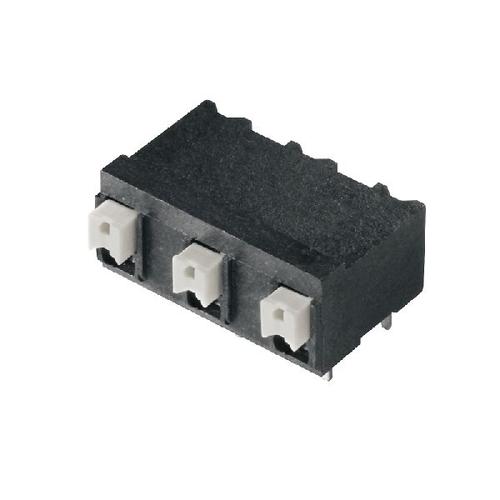

1824930000

Specifications

Onay Kuruluşu

CSA, cURus

ECCN Kodu

EAR99

Wire Gauge

16-24 AWG

Pitch

0.295 7.50mm

Montaj

Through Hole

Wire Gauge Min

16 AWG

Flammability Rating

UL94 V-0

Stripping Length

8mm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Akım Değeri

10A

Wire Gauge Max

24 AWG

Ambalaj

Tube

RoHS Durumu

RoHS Compliant

Contact Material Plating

Copper Alloy - Tin Plated

Montaj Tipi

Through Hole

Number Of Contacts

7

Radyasyon Dayanımı

No

Number Of Decks

1

Wire Termination

Screwless - Push Button Clamp

Seri

Omnimate LSF-SMT

Hole Diameter

1.1 mm

Renk

Black

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Additional Feature

GLASS FILLED LCP, 94V-0

Sıra Sayısı

1

Fastening Method

PUSH-ON

Contact Plating

Tin

Mating Orientation

Horizontal with Board

Fabrika Tedarik Süresi

12 Weeks

Çalışma Sıcaklığı

-50°C~240°C

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Terminal

Screwless

Number Of Levels

1

Safety Approval

UL; VDE; CSA

Akım

12A

Orientation

Right Angle

Nominal Gerilim

300V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Ways

7
