Volume pricing
- 1+ pcs$12.41
- 10+ pcs$11.70
- 100+ pcs$11.04
- 500+ pcs$10.42
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

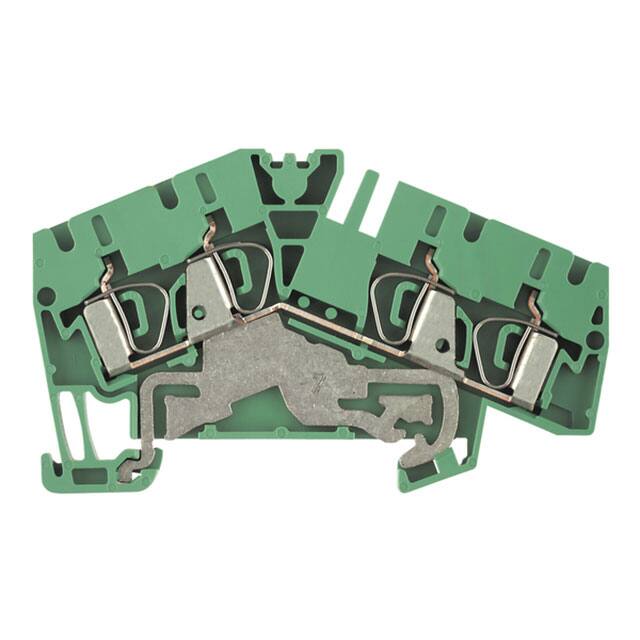

Specifications
- Wire Gauge Or Range Awg
- 10-26 AWG
- Flammability Rating
- UL94 V-0
- Material Insulation
- Thermoplastic, Wemid
- Seri
- Z
- ECCN Kodu
- EAR99
- Wire Gauge Or Range Mm
- 0.5-6mm2
- Uzunluk
- 75mm
- Wire Gauge Max
- 26 AWG
- Material Flammability Rating
- UL94 V-0
- Onay Kuruluşu
- CE, CSA, IEC, UR
- Safety Approval
- UL; CSA
- Pozisyon Sayısı
- 4
- Fabrika Tedarik Süresi
- 8 Weeks
- Genişlik
- 6.1mm
- Stripping Length
- 10mm
- Terminal Stili
- Push In, Spring
- Number Of Decks
- 1
- Yayın Yılı
- 2011
- Renk
- Green, Yellow
- Nem Hassasiyeti (MSL)
- Not Applicable
- Yükseklik
- 45.5mm
- Tip
- Ground, Earth
- Sıra Sayısı
- 1
- Parça Durumu
- Active
- Fastening Method
- SPRING LOADED
- Rated Voltage
- 800V
- Wire Gauge Min
- 10 AWG
- REACH Uyumluluk Kodu
- compliant
- Number Of Levels
- 1
- RoHS Durumu
- Non-RoHS Compliant
