Volume pricing
- 1+ pcs$5.17
- 10+ pcs$4.88
- 100+ pcs$4.60
- 500+ pcs$4.34
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

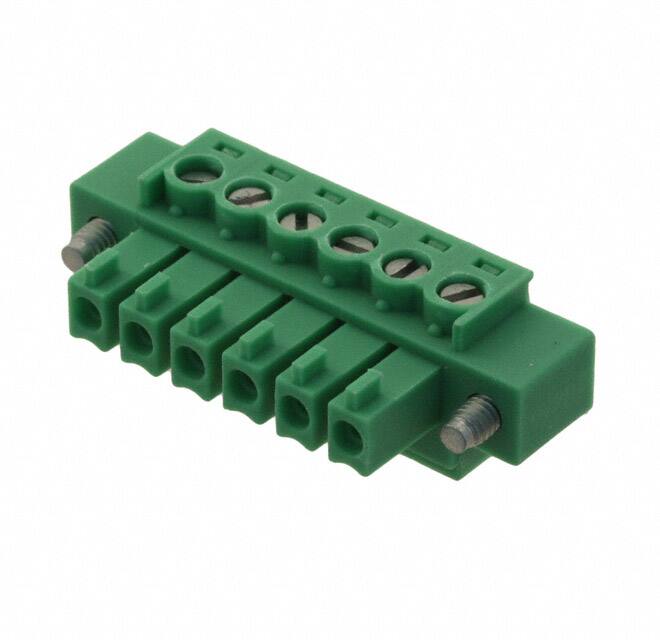

Specifications
- Yayın Yılı
- 2003
- Housing Material
- Polyamide (PA), Nylon, Glass Filled
- Renk
- Green
- Nem Hassasiyeti (MSL)
- Not Applicable
- Pitch
- 0.150 3.81mm
- Sıra Sayısı
- 1
- Parça Durumu
- Active
- Terminal
- Screw
- Özellikler
- Mating Flange
- Ambalaj
- Bulk
- Mil Conformance
- NO
- Wire Gauge Or Range Awg
- 16-28 AWG
- Filter Feature
- NO
- Seri
- Omnimate BC
- Wire Gauge Or Range Mm
- 0.2-1.5mm2
- Akım
- 10A
- Plug Wire Entry
- 180°
- Contact Mating Finish
- Tin
- Montaj Tipi
- Free Hanging (In-Line)
- Screw Size
- M2
- Terminal Stili
- Screw - Clamping Yoke (Tension Sleeve)
- Kurşunsuz Kodu
- yes
- Genişlik
- 15.5mm
- Radyasyon Dayanımı
- No
- Currentiec
- 17.5A
- Insulation Height
- 0.437 11.10mm
- Yükseklik
- 11.1mm
- Tip
- Plug, Female Sockets
- Insulation Resistance
- 5MOhm
- Montaj
- Free Hanging, Panel
- Çalışma Sıcaklığı
- -50°C~120°C
- Number Of Levels
- 1
- Wire Strip Length
- 7mm
- Wire Gauge Min
- 16 AWG
- Orientation
- Right Angle
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Gerilim
- 300V
- Mixed Contacts
- NO
- Voltageiec
- 320V
