Volume pricing
- 1+ pcs$4.64
- 10+ pcs$4.37
- 100+ pcs$4.13
- 500+ pcs$3.89
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

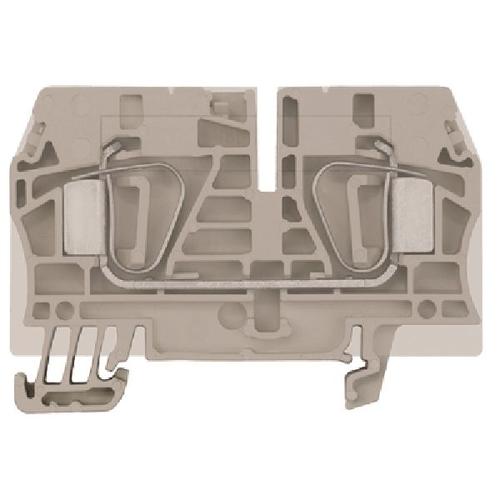

Specifications
- Parça Durumu
- Active
- Additional Feature
- STANDARD: UL 94V-0
- Fastening Method
- SPRING LOADED
- Wire Gauge Min
- 8 AWG
- Orientation
- Straight
- Number Of Levels
- 1
- Terminal Width
- 10.0mm
- RoHS Durumu
- RoHS Compliant
- Yayın Yılı
- 2012
- Radyasyon Dayanımı
- No
- Akım Değeri
- 41A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Renk
- Beige
- Yükseklik
- 45mm
- Tip
- Feed Through
- Sıra Sayısı
- 1
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Max
- 22 AWG
- Number Of Contacts
- 2
- Onay Kuruluşu
- CE, IEC
- Safety Approval
- CE
- Fabrika Tedarik Süresi
- 8 Weeks
- Nominal Gerilim
- 8kV
- Pozisyon Sayısı
- 2
- Terminal Stili
- Push In, Spring
- Stripping Length
- 13mm
- Kurşunsuz Kodu
- yes
- Genişlik
- 10mm
- Number Of Decks
- 1
- HTS Kodu
- 8536.69.40.40
- Wire Gauge Or Range Awg
- 8-22 AWG
- Flammability Rating
- UL94 V-0
- Seri
- Z
- Material Insulation
- Thermoplastic, Wemid
- Voltageiec
- 500V
- ECCN Kodu
- EAR99
- Uzunluk
- 65mm
- Wire Gauge Or Range Mm
- 0.5-10mm2
