Volume pricing
- 1+ pcs$0.46
- 10+ pcs$0.44
- 100+ pcs$0.41
- 500+ pcs$0.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

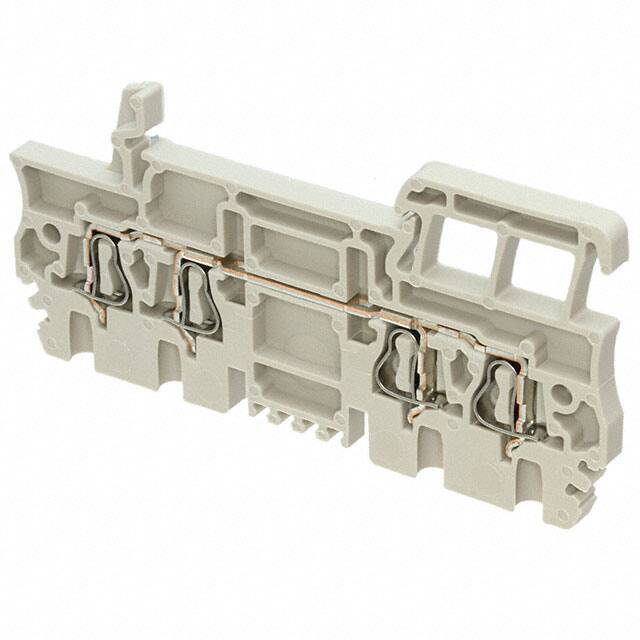

Specifications
- Nominal Gerilim
- 6kV
- Wire Gauge Max
- 30 AWG
- Parça Durumu
- Active
- ECCN Kodu
- EAR99
- Orientation
- Straight
- Kurşunsuz Kodu
- yes
- Wire Gauge Min
- 16 AWG
- Wire Gauge Or Range Mm
- 0.5-1.5mm2
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 6 Weeks
- Fastening Method
- SPRING LOADED
- Voltageiec
- 500V
- Safety Approval
- UL; CSA; CE
- Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2009
- Material Insulation
- Thermoplastic, Wemid
- Number Of Levels
- 1
- Yükseklik
- 36.5mm
- Seri
- Z
- Housing Material
- Nylon
- Sıra Sayısı
- 1
- Tip
- Feed Through
- RoHS Durumu
- RoHS Compliant
- Stripping Length
- 10mm
- Number Of Decks
- 1
- Renk
- Beige
- Wire Gauge Or Range Awg
- 16-30 AWG
- Uzunluk
- 75.5mm
- Number Of Ways
- 4
- Onay Kuruluşu
- CE, CSA, IEC, UR
- Akım
- 15A
- Currentiec
- 17.5A
- Number Of Contacts
- 4
- Terminal Stili
- Push In, Spring
- Nem Hassasiyeti (MSL)
- Not Applicable
- Material Flammability Rating
- UL94 V-0
- Radyasyon Dayanımı
- No
- Akım Değeri
- 17.5A
- Gerilim
- 300V
- Genişlik
- 3.5mm
