Volume pricing
- 1+ pcs$9.80
- 10+ pcs$9.25
- 100+ pcs$8.72
- 500+ pcs$8.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

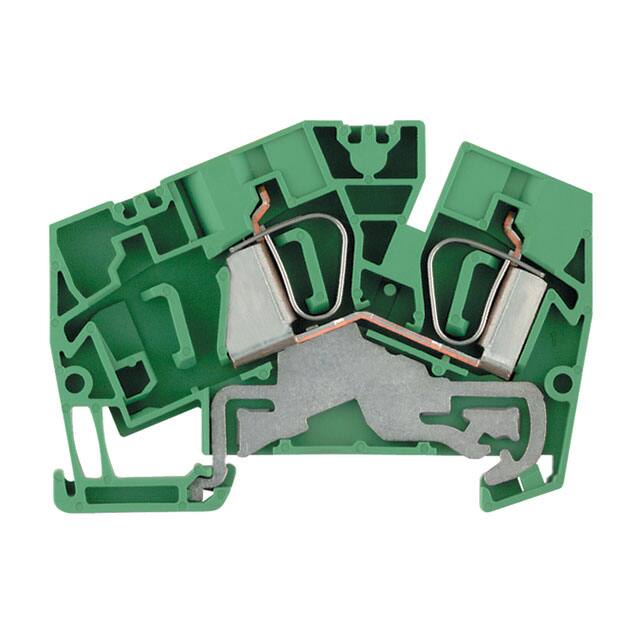

Specifications
- Fastening Method
- SPRING LOADED
- Genişlik
- 8.1mm
- Number Of Ways
- 1
- Onay Kuruluşu
- CE, CSA, IEC, UR
- Kurşunsuz Kodu
- yes
- Wire Gauge Min
- 8 AWG
- Montaj
- Cable
- Yayın Yılı
- 2009
- HTS Kodu
- 8536.69.40.40
- Uzunluk
- 68mm
- Number Of Levels
- 1
- Stripping Length
- 12mm
- RoHS Durumu
- RoHS Compliant
- Renk
- Green, Yellow
- Safety Approval
- UL; CSA; CE
- Material Insulation
- Thermoplastic, Wemid
- Wire Gauge Or Range Awg
- 8-22 AWG
- Sıra Sayısı
- 1
- Tip
- Ground, Earth
- Wire Gauge Or Range Mm
- 0.5-10mm2
- Flammability Rating
- UL94 V-0
- Number Of Decks
- 1
- Housing Material
- Nylon
- Yükseklik
- 49.19mm
- Material Flammability Rating
- UL94 V-0
- Rated Voltage
- 800V
- Terminal Stili
- Push In, Spring
- Number Of Contacts
- 2
- Nem Hassasiyeti (MSL)
- Not Applicable
- Radyasyon Dayanımı
- No
- Wire Gauge Max
- 22 AWG
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Seri
- Z
- Housing Color
- Green
- ECCN Kodu
- EAR99
- Additional Feature
- STANDARD: UL 94V-0
- Fabrika Tedarik Süresi
- 6 Weeks
