Volume pricing
- 1+ pcs$12.17
- 10+ pcs$11.48
- 100+ pcs$10.83
- 500+ pcs$10.22
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

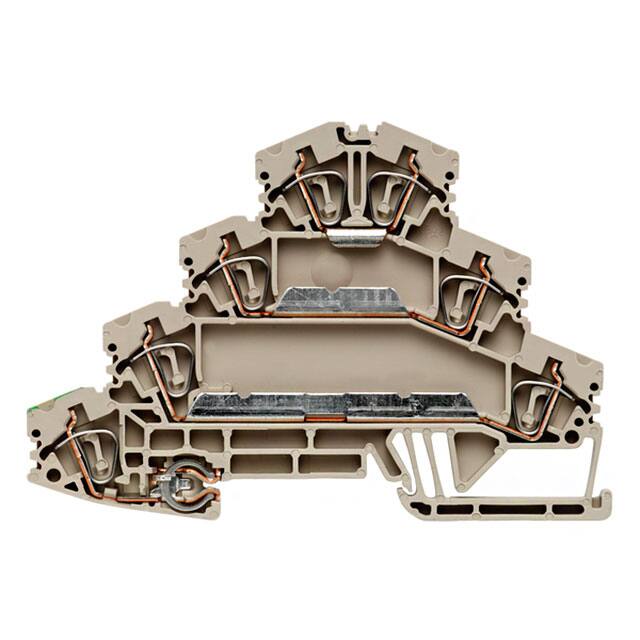

Specifications
- Uzunluk
- 102mm
- Kurşunsuz
- Lead Free
- Akım Değeri
- 24A
- Nem Hassasiyeti (MSL)
- Not Applicable
- Wire Gauge Or Range Mm
- 0.5-4mm2
- Parça Durumu
- Active
- Yayın Yılı
- 2009
- Fabrika Tedarik Süresi
- 6 Weeks
- Housing Material
- Nylon
- Material Insulation
- Thermoplastic, Wemid
- Gerilim
- 300V
- Pozisyon Sayısı
- 7
- Orientation
- Straight
- Flammability Rating
- UL94 V-0
- Fastening Method
- SCREW
- Stripping Length
- 10mm
- Wire Gauge Max
- 26 AWG
- Voltageiec
- 400V
- Wire Gauge Or Range Awg
- 12-26 AWG
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Min
- 12 AWG
- Sıra Sayısı
- 4
- Safety Approval
- UL; CSA
- Terminal Stili
- Push In, Spring
- Onay Kuruluşu
- CE, CSA, IEC, UR
- Number Of Circuits
- 2
- Number Of Decks
- 4
- Kurşunsuz Kodu
- yes
- Radyasyon Dayanımı
- No
- Nominal Gerilim
- 6kV
- Seri
- Z
- Number Of Levels
- 4; 1 Grounded
- ECCN Kodu
- EAR99
- Genişlik
- 5.1mm
- Renk
- Beige
- Material Flammability Rating
- UL94 V-0
- Yükseklik
- 69.5mm
- Tip
- Feed Through, Isolated
