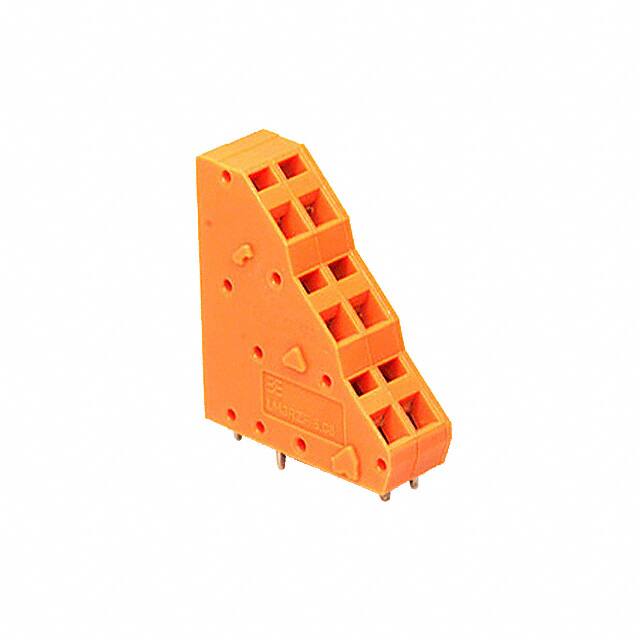

Specifications
- Contact Material Plating
- Copper Alloy - Tin Plated
- Ambalaj
- Bulk
- Positions Per Level
- 2
- Wire Gauge
- 14-24 AWG
- Insulation Materials
- Nylon
- Seri
- Omnimate LMZF
- Contact Plating
- Tin
- Yayın Yılı
- 2005
- Fastening Method
- SPRING LOADED
- Radyasyon Dayanımı
- No
- Number Of Levels
- 3
- Pitch
- 0.200 5.08mm
- Yükseklik
- 73.2mm
- Terminal
- Screwless
- Sıra Sayısı
- 3
- Nominal Gerilim
- 300V
- Renk
- Orange
- Montaj
- Through Hole
- Mating Orientation
- 45° (135°) Angle with Board
- Montaj Tipi
- Through Hole
- Wire Gauge Min
- 14 AWG
- Contact Materials
- Copper
- Number Of Decks
- 3
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Wire Termination
- Screwless - Spring Cage, Tension Clamp
- Genişlik
- 64.4mm
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Obsolete
- Kurşunsuz
- Lead Free
- Number Of Ways
- 6
- Çalışma Sıcaklığı
- -50°C~100°C
- Onay Kuruluşu
- CSA
- Housing Material
- Polyamide (PA), Nylon
- Number Of Poles
- 6
- Fabrika Tedarik Süresi
- 11 Weeks
- ECCN Kodu
- EAR99
- RoHS Durumu
- RoHS Compliant
- Stripping Length
- 7.5mm
- Nem Hassasiyeti (MSL)
- Not Applicable
- Wire Gauge Max
- 24 AWG
