Volume pricing
- 1+ pcs$4.83
- 10+ pcs$4.56
- 100+ pcs$4.30
- 500+ pcs$4.06
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Stripping Length
- 6mm
- Number Of Contacts
- 3
- Wire Gauge Min
- 14 AWG
- Fabrika Tedarik Süresi
- 12 Weeks
- Kurşunsuz Kodu
- yes
- Mixed Contacts
- NO

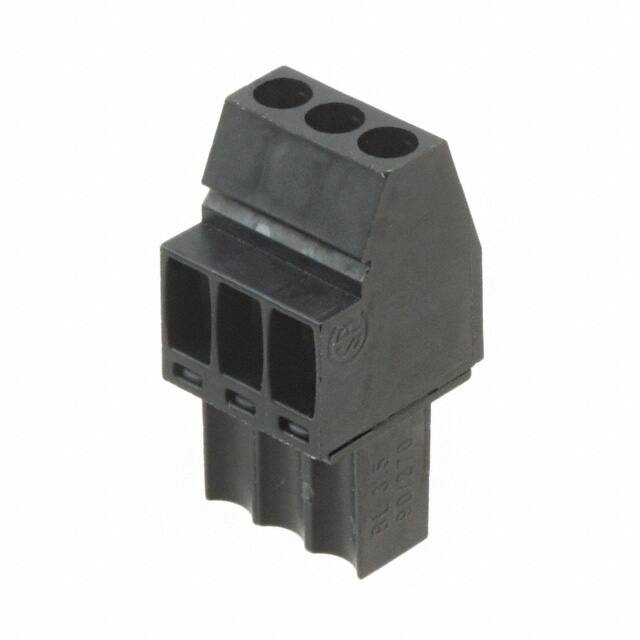

- Tip
- Plug, Female Sockets
- Genişlik
- 11.6mm
- Terminal
- Screw
- Renk
- Black
- Housing Material
- Polybutylene Terephthalate (PBT)
- Contact Materials
- Copper Alloy
- RoHS Durumu
- RoHS Compliant
- Montaj Tipi
- Free Hanging (In-Line)
- Insulation Height
- 0.888 22.56mm
- Montaj
- Free Hanging, Panel
- Sıra Sayısı
- 1
- Çalışma Sıcaklığı
- -50°C~100°C
- Orientation
- Straight
- Wire Gauge Or Range Awg
- 14-28 AWG
- Option
- GENERAL PURPOSE
- Ul Flammability Code
- 94V-0
- Seri
- Omnimate BL
- Ingress Protection
- IP20
- Number Of Levels
- 1
- Pitch
- 0.138 3.50mm
- Mil Conformance
- NO
- Nem Hassasiyeti (MSL)
- Not Applicable
- Screw Size
- M2
- Uzunluk
- 10.5mm
- Akım
- 8A
- Filter Feature
- NO
- Din Conformance
- NO
- Currentiec
- 12A
- Wire Gauge Or Range Mm
- 0.2-1.5mm2
- Wire Gauge Max
- 28 AWG
- Material Flammability Rating
- UL94 V-0
- Yükseklik
- 22.6mm
- Additional Feature
- HIGH DENSITY
- Radyasyon Dayanımı
- No
