Volume pricing
- 1+ pcs$2.05
- 10+ pcs$1.93
- 100+ pcs$1.82
- 500+ pcs$1.72
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

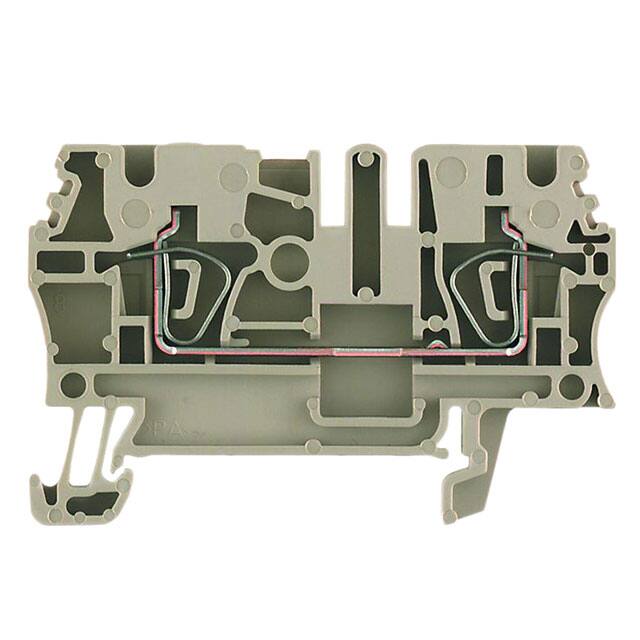

Specifications
- Orientation
- Straight
- Yayın Yılı
- 2009
- HTS Kodu
- 8536.69.40.40
- Uzunluk
- 59.5mm
- Number Of Levels
- 1
- Fastening Method
- SPRING LOADED
- Genişlik
- 5.1mm
- Onay Kuruluşu
- CE, CSA, IEC, UR
- Gerilim
- 600V
- Kurşunsuz Kodu
- yes
- Wire Gauge Min
- 12 AWG
- Renk
- Orange
- Safety Approval
- UL; CSA; CE
- Akım Değeri
- 24A
- Stripping Length
- 10mm
- RoHS Durumu
- RoHS Compliant
- Number Of Decks
- 1
- Voltageiec
- 800V
- Yükseklik
- 38.5mm
- Housing Material
- Nylon
- Akım
- 21A
- Currentul
- 25A
- Material Insulation
- Thermoplastic, Wemid
- Wire Gauge Or Range Awg
- 12-30 AWG
- Pozisyon Sayısı
- 2
- Sıra Sayısı
- 2
- Tip
- Feed Through
- Nominal Gerilim
- 8kV
- Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Mm
- 0.5-4mm2
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Seri
- Z
- Fabrika Tedarik Süresi
- 8 Weeks
- Additional Feature
- STANDARD: UL 94V-0
- ECCN Kodu
- EAR99
- Material Flammability Rating
- UL94 V-0
- Terminal Stili
- Push In, Spring
- Radyasyon Dayanımı
- No
- Nem Hassasiyeti (MSL)
- Not Applicable
