Volume pricing
- 1+ pcs$10.73
- 10+ pcs$10.12
- 100+ pcs$9.55
- 500+ pcs$9.01
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

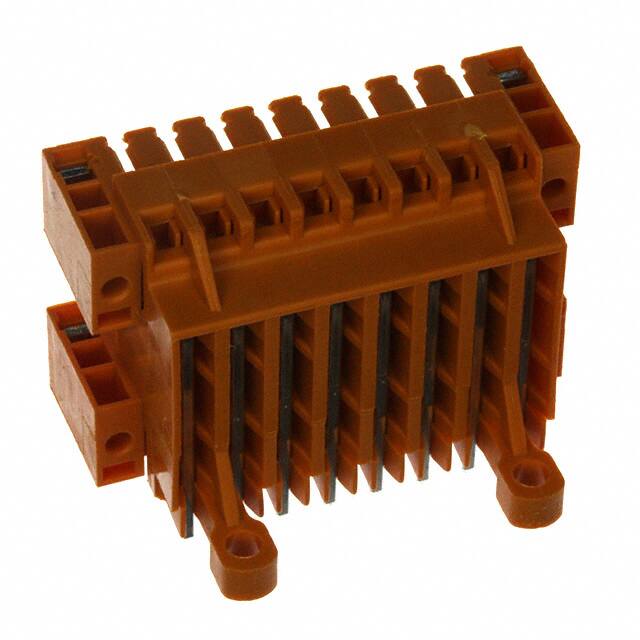

Specifications
- Gerilim
- 300V
- Pitch
- 0.138 3.50mm
- Currentiec
- 10.5A
- Kurşunsuz Kodu
- yes
- Total Number Of Contacts
- 16
- Ingress Protection
- IP10
- Contact Tail Length
- 0.126 3.20mm
- Header Orientation
- 90°, Right Angle
- Contact Materials
- Copper Alloy
- Nominal Gerilim
- 300V
- Kurşunsuz
- Lead Free
- Akım Değeri
- 9A
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Sıra Sayısı
- 1
- Filter Feature
- NO
- Option
- GENERAL PURPOSE
- Fabrika Tedarik Süresi
- 16 Weeks
- JESD-609 Kodu
- e3
- Onay Kuruluşu
- CSA, UR
- Number Of Levels
- 2
- Seri
- Omnimate SL
- Yayın Yılı
- 2008
- Din Conformance
- NO
- Housing Material
- Polybutylene Terephthalate (PBT)
- Çalışma Sıcaklığı
- -50°C~100°C
- Mil Conformance
- NO
- Uzunluk
- 43.8mm
- Genişlik
- 24.7mm
- Insulation Height
- 0.917 23.29mm
- RoHS Durumu
- RoHS Compliant
- Number Of Poles
- 16
- Iec Conformance
- NO
- Voltageiec
- 200V
- Material Flammability Rating
- UL94 V-0
- Flammability Rating
- UL94 V-0
- Positions Per Level
- 8
- Ul Flammability Code
- 94V-0
- Özellikler
- Mating and Mounting Flange
- Akım
- 8A
- Insulation Resistance
- 1MOhm
