Volume pricing
- 1+ pcs$16.68
- 10+ pcs$15.73
- 100+ pcs$14.84
- 500+ pcs$14.00
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

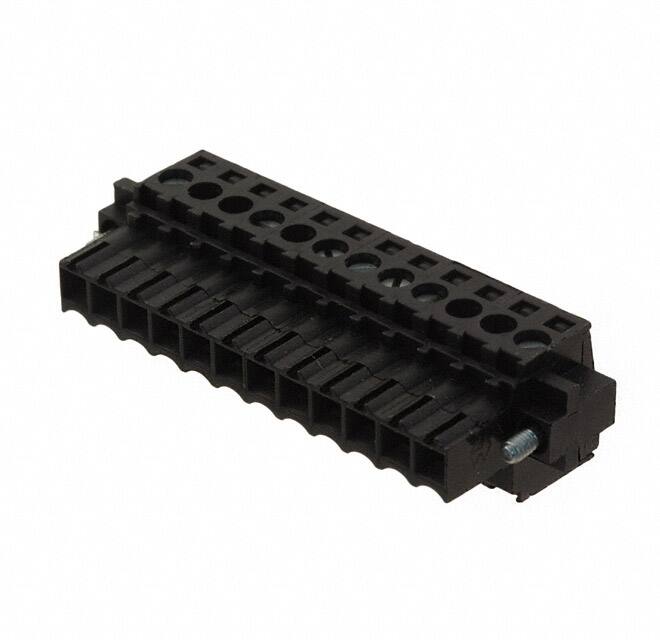

Specifications
- Çalışma Sıcaklığı
- -50°C~100°C
- Montaj
- Cable, Free Hanging
- Kurşunsuz Kodu
- yes
- Montaj Tipi
- Free Hanging (In-Line)
- Din Conformance
- NO
- Housing Material
- Polybutylene Terephthalate (PBT)
- Özellikler
- Mating Flange
- Wirecable Gauge
- 28 AWG
- Flammability Rating
- UL94 V-0
- Voltageiec
- 320V
- Material Flammability Rating
- UL94 V-0
- Uzunluk
- 49mm
- Tip
- Plug, Female Sockets
- Wire Gauge Or Range Awg
- 14-28 AWG
- Fabrika Tedarik Süresi
- 16 Weeks
- Yükseklik
- 13mm
- Kurşunsuz
- Lead Free
- Gerilim
- 300V
- Nominal Gerilim
- 300V
- Genişlik
- 18.5mm
- Onay Kuruluşu
- CSA, UR
- Option
- GENERAL PURPOSE
- Orientation
- Right Angle
- Terminal Stili
- Screw - Clamping Yoke (Tension Sleeve)
- Seri
- Omnimate BL
- Wire Gauge Min
- 14 AWG
- Iec Conformance
- NO
- Number Of Levels
- 1
- Contact Materials
- Copper Alloy
- RoHS Durumu
- RoHS Compliant
- Number Of Contacts
- 12
- Akım
- 10A
- Wire Gauge Max
- 28 AWG
- Mixed Contacts
- NO
- Stripping Length
- 6mm
- Max Current Rating
- 10A
- Reach Svhc
- No SVHC
- Currentiec
- 17A
- Sıra Sayısı
- 1
- Additional Feature
- HIGH DENSITY
