Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Wire Gauge Min
- 14 AWG
- Gerilim
- 300V
- Plug Wire Entry
- 180°
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- Not Applicable
- Kurşunsuz
- Lead Free
- Nominal Gerilim
- 300V
- Akım Değeri
- 21A
- Insulation Height
- 0.397 10.08mm
- Wire Gauge Max
- 26 AWG
- Depth
- 24.5mm
- Number Of Levels
- 1
- Fabrika Tedarik Süresi
- 6 Weeks
- Voltageiec
- 400V
- Max Supply Voltage
- 300V
- Genişlik
- 24.5mm
- Sıra Sayısı
- 1
- Uzunluk
- 20.32mm
- Montaj
- Cable, Free Hanging
- Parça Durumu
- Active
- Orientation
- Straight
- Montaj Tipi
- Free Hanging (In-Line)
- JESD-609 Kodu
- e3
- Terminal Stili
- Crimp

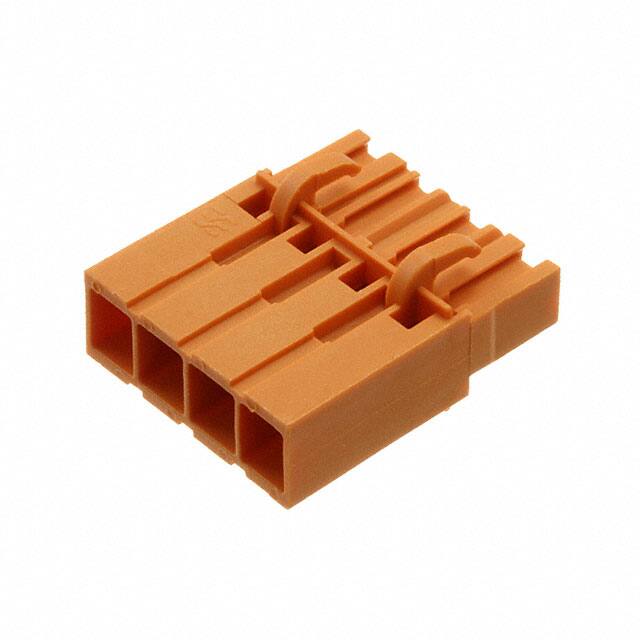

- Tip
- Plug Housing for Female Sockets
- Max Current Rating
- 10A
- Onay Kuruluşu
- CSA, UR
- Stripping Length
- 5mm
- Total Number Of Contacts
- 4
- Çalışma Sıcaklığı
- -50°C~100°C
- Contact Materials
- COPPER ALLOY
- Housing Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Filter Feature
- NO
- Özellikler
- Retention Latches (Non-Wire Side)
- Pitch
- 0.200 5.08mm
- Flammability Rating
- UL94 V-0
- Mixed Contacts
- NO
- Mil Conformance
- NO
- Iec Conformance
- NO
- Kurşunsuz Kodu
- yes
