Specifications
- Sıra Sayısı
- 1
- Montaj Tipi
- Free Hanging (In-Line)
- Insulation Height
- 0.598 15.19mm
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Filter Feature
- NO
- Material Flammability Rating
- UL94 V-0
- Voltageiec
- 400V
- Pitch
- 0.200 5.08mm
- Flammability Rating
- UL94 V-0
- Renk
- Orange
- Ingress Protection
- IP20
- Mil Conformance
- NO
- Fabrika Tedarik Süresi
- 8 Weeks
- Currentiec
- 19A
- Depth
- 20mm
- Tip
- Plug, Female Sockets
- Montaj
- Cable, Free Hanging
- Seri
- Omnimate BL
- Din Conformance
- NO
- Radyasyon Dayanımı
- No
- Contact Materials
- Copper Alloy
- Number Of Levels
- 1
- Gerilim
- 300V
- Yayın Yılı
- 2002
- Pozisyon Sayısı
- 2
- Terminal Stili

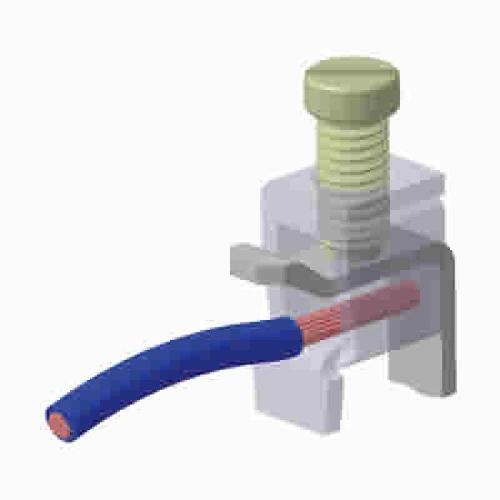

- Screw - Clamping Yoke (Tension Sleeve)
- Ul Flammability Code
- 94V-0
- Contact Mating Finish
- Tin
- Wire Gauge Or Range Awg
- 12-26 AWG
- Iec Conformance
- NO
- Wire Strip Length
- 7mm
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- Not Applicable
- Max Current Rating
- 15A
- Ambalaj
- Bulk
- Screw Size
- M2.5
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Max
- 26 AWG
- Insulation Resistance
- 1MOhm
- Orientation
- Right Angle
