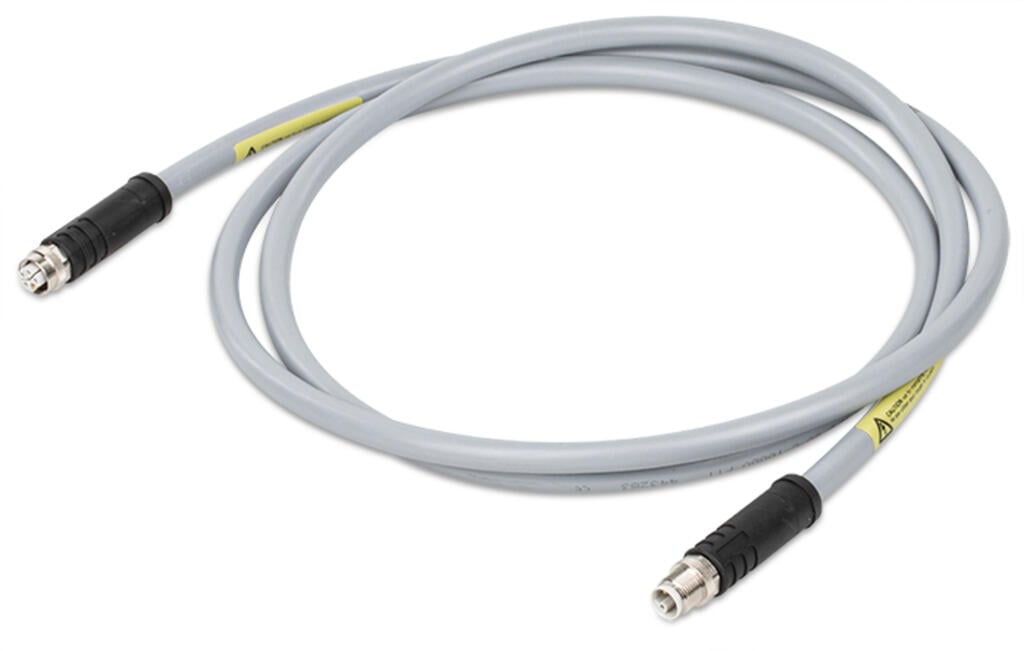

756-3515/050-010

Specifications

Sheathed Cable Color

gray

Type Code

LiF9YH-11Y-0B 5x2.5mm2

Operating Voltage

DC 63 V gem?? IEC 60664-1

Customs Tariff Number

85444290900

Gtin

4066966473513

Ambient Temperature Operation

-40 … +90 °C (UL max. +80 °C)

Bending Cycles

10Mio.

Number Of Poles

5

Ambient Air Operating Temperature In Drag Chain

-25 … +60 °C

Contact Material Connector

CuZn

Rohs Compliance Status

Compliant,No Exemption

Conductor Resistance

≤ 8,21 Ω/km

Connector Interface Coding Cableadapter11

L-coded

Ambient Operating Temperature Static

-40 … +90 °C

Bending Radius

Fixed: >4x?; Flexible: >7.5x?

Insulation Resistance

≥108Ω

Conductor Insulation

PP9Y (halogen-free)

Tightening Torque

1 Nm

Ambient Operating Temperature Dynamic

-30 … +90 °C

Eccn

NO US CLASSIFICATION

Cable Types

Design per UL + CSA Style 20234

Cable Connection Direction To Mating Direction

0°

Housing Material

TPU/TPU, black (~ RAL 9005)

Pollution Degree

3 per IEC 60664-1

Torsional Capacity

270

Conductor Configuration

Bare copper wire (84 x 0.15 mm)

Contact Plating Connector

Ni/Au (0.2 μm Au over Ni)

Sheath Material

Polyurethane (PUR), halogen-free per VDE 0472, Part 815; flame resistant per IEC 60332-1-2, VDE 0482-332-1-2, UL vertical flame test VW-1, CSA FT-1

Rated Surge Voltage

1.5 kV per IEC 61076-2-111

Packaging Type

unpacked

Protection Type

IP68

Connector

Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM/FKM

Note

Exclusion of hazardous substances per: 200/53/EC, 2003/11/EC, (EC) No. 1907/2006, 2015/863/EU

Pu Spu

1 pcs

Contact Resistance

5mΩ

Operating Current

16A

Kablo Uzunluğu

1m

Cable Connection Direction To Mating Direction2

0°

Country Of Origin

DE

Connection Type

M12 Socket - M12 plug
