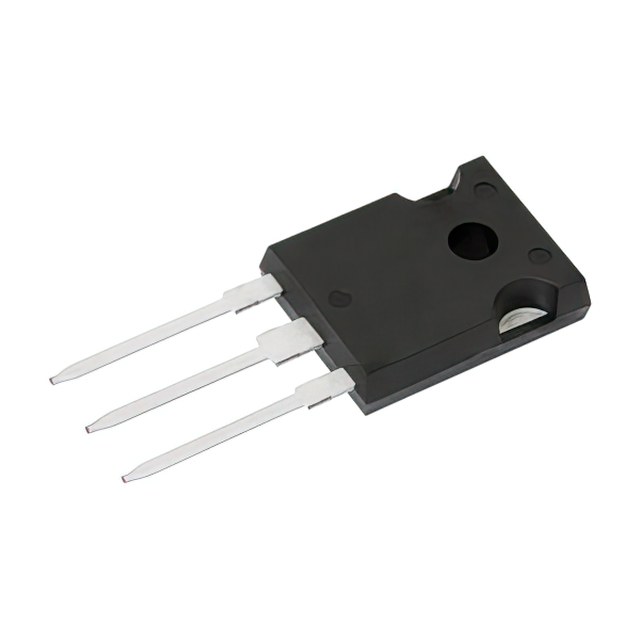

VS-80TPS16L-M3

Specifications

Ambalaj

Tube

Current Off State Max

200 μA

Kılıf / Paket

TO-247-3

Temel Ürün No

80TPS16

Voltage On State Vtm Max

1.66 V

Current On State It Rms Max

126 A

Voltage Gate Trigger Vgt Max

1.5 V

Montaj Tipi

Through Hole

Scr Type

Standard Recovery

Current Hold Ih Max

200 mA

Delay Time Propagation

1.6 kV

Current On State It Av Max

80 A

Current Gate Trigger Igt Max

100 mA

Çalışma Sıcaklığı

-40°C ~ 150°C (TJ)

Current Non Rep Surge5060hz Itsm

1kA @ 50Hz

Parça Durumu

Active

Tedarikçi Cihaz Paketi

TO-247AD
