Specifications
- Maximum Dc Current
- 10 A
- Circuit Type
- Filter
- Max Current Rating
- 10A
- Number Of Channels
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Dc Current
- 10A
- ECCN Kodu
- EAR99
- Product Length
- 7.06
- Attenuation Value
- 45dB @ 100MHz
- Applications
- Data Lines for Mobile Devices
- Fonksiyon Sayısı
- 1
- Additional Feature

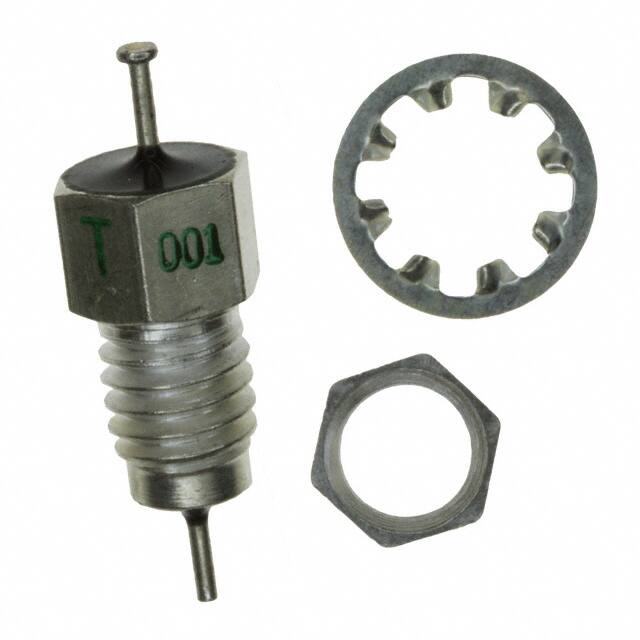

- PI-TYPE CIRCUIT; WITH SILVER PLATED COPPER ALLOY HEX NUT AND INTERNAL TOOTH LOCK WASHER
- Yükseklik
- 11.8872mm
- Çap
- 6.35mm
- Esd Protection
- No
- Temperature Coefficient
- 100.0000 ppm/°C
- Resistance Tolerance
- 1
- Kurşunsuz Kodu
- yes
- Mounting
- Screw Mount
- Fabrika Tedarik Süresi
- 12 Weeks
- RoHS Durumu
- RoHS Compliant
- Nominal Gerilim
- 200V
- Voltage Rating
- 350 V
- Insertion Loss Max
- 70 dB
- Terminal
- Turret
- Power Rating
- 0.125 W
- Kılıf / Paket
- Axial, Bushing, 1 Turret Lead
- Yayın Yılı
- 2006
- Tip
- Low Pass
- Values
- C = 1500pF
- Seri
- 4200
- Pin Sayısı
- 2
- Filter Order
- 3rd
- HTS Kodu
- 8504.50.80.00
- Ambalaj
- Bulk
- Terminal Kaplaması
- Silver (Ag)
- Boyut / Ölçü
- 0.250Diax0.468L 6.35mmx11.89mm
- Parça Durumu
- Active
- JESD-609 Kodu
- e4
- Çalışma Sıcaklığı
- -55°C~125°C
