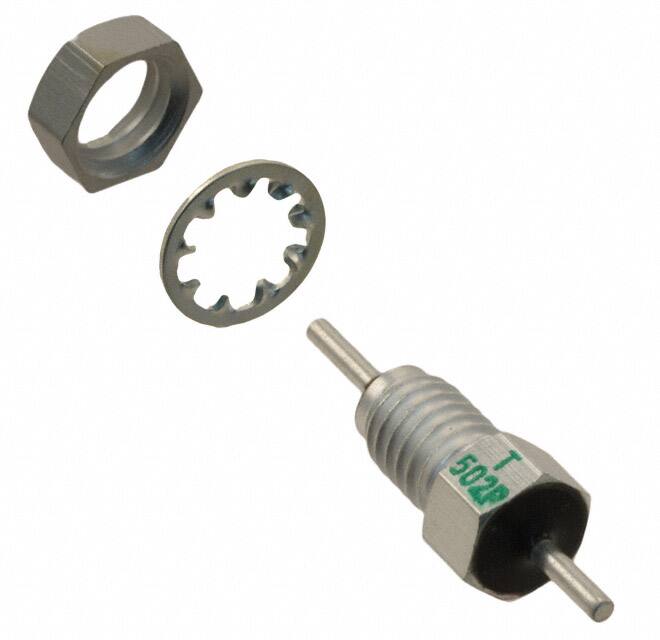

2499-003-X5W0-502PLF

Specifications

Additional Feature

C-TYPE CIRCUIT

Tolerans

0% +100%

Boyut / Ölçü

0.250Diax0.468L 6.35mmx11.89mm

Kılıf / Paket

Axial, Bushing

Insulation Resistancemin

10000MOhm

Gerilim

500V

Product Diameter Mm

Not Required(mm)

Terminal Stili

Axial

Temperature Coefficient

X5W

Kurşunsuz Kodu

yes

Maximum Voltage Rating

500 Vdc

Insertion Loss

30dB @ 100MHz

Product Length Mm

11.89(mm)

Ambalaj

Bulk

Montaj Stili

Panel

Maks. Çalışma Sıcaklığı

+ 125 C

Terminal Kaplaması

Silver (Ag)

Temp Coeff Dielectric

X5W

Ripple Current

20000(mA)

Max Voltage Rating Dc

500V

Operating Temp Range

-55C to 125C

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

14 Weeks

Tip

C Filter

Parça Durumu

Active

HTS Kodu

8504.50.80.00

Voltage Rating

500 V

Microwave Application

NO

Thread Size

12-28

Product Depth Mm

6.35(mm)

Maximum Dc Current

20 A

Terminal

PC Pins

Temperature Coefficient Code

X5W

ECCN Kodu

EAR99

Filter Type

FEED THROUGH CAPACITOR

JESD-609 Kodu

e4

Fonksiyon Sayısı

1

Max Current Rating

20A

Montaj

Panel, Through Hole

Kapasitans

5000pF
