Volume pricing
- 1+ pcs$25.65
- 10+ pcs$24.20
- 100+ pcs$22.83
- 500+ pcs$21.54
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

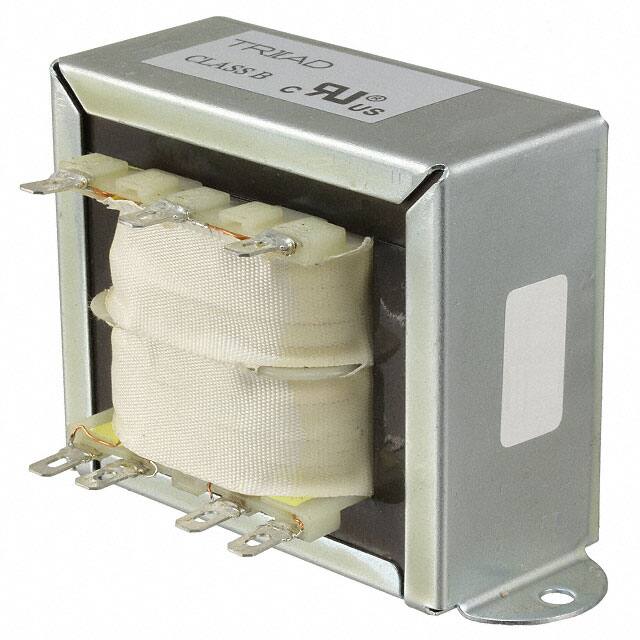

Specifications
- Applications
- POWER
- Voltage Isolation
- 2500VAC
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Boyut / Ölçü
- 102.39mm Lx57.15mm W
- Seri
- Quick Pack
- Kurşunsuz
- Lead Free
- Max Power Dissipation
- 100W
- Nem Hassasiyeti (MSL)
- Not Applicable
- Voltage Secondary Full Load
- 48V
- RoHS Durumu
- ROHS3 Compliant
- Va Rating
- 100 VA
- Weight
- 2.8lbs 1.3kg
- Onay Kuruluşu
- UL
- Output Current
- 2A
- Center Tap
- Yes
- Primary Windings
- Dual
- Pin Sayısı
- 7
- Yükseklik
- 65.0748mm
- Secondary Windings
- Single
- HTS Kodu
- 8504.31.40.65
- Reach Svhc
- Unknown
- Terminal Stili
- Solder, Quick Connect - 0.187 (4.7mm)
- Akım Değeri
- 2A
- Montaj Tipi
- Chassis Mount
- Voltage Primary
- 115V 230V
- Tip
- Laminated Core
- Uzunluk
- 102.39mm
- Montaj
- Chassis Mount, Flanges, Panel
- Terminal
- Quick Connect
- Output Voltage1
- 48V
- Yayın Yılı
- 2006
- Fabrika Tedarik Süresi
- 17 Weeks
- Maks. Oturma Yüksekliği
- 65.07mm
- ECCN Kodu
- EAR99
- Power Rating
- 100W
- Power Max
- 100VA
