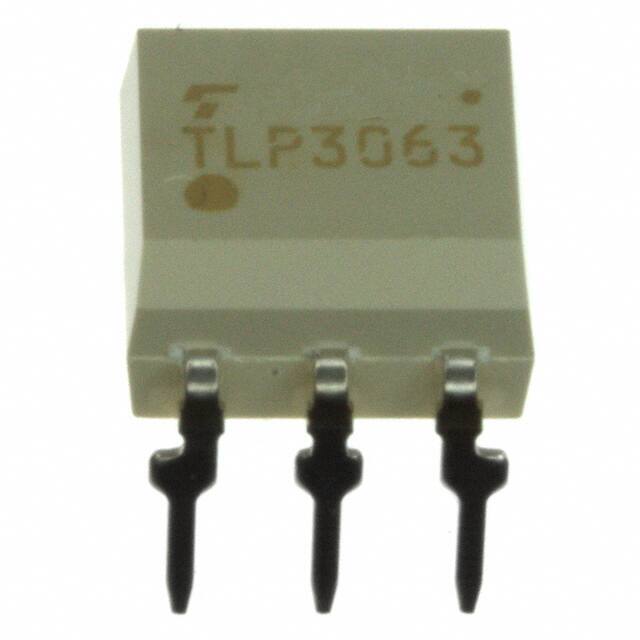

TLP3063SCF

Specifications

Currentholdih

600μA Typ

Onay Kuruluşu

BSI, SEMKO, UR

Repetitive Peak Offstate Voltage

600V

RoHS Durumu

RoHS Compliant

Zerocrossing Circuit

Yes

Current On State It Rms Max

100mA

Voltage Forward Vf Typ

1.15V

Kılıf / Paket

6-DIP (0.300, 7.62mm), 5 Leads

Onstate Voltagemax

3V

Input Trigger Currentmax

0.005A

Yüzey Montaj

NO

Çıkış Tipi

Triac

Number Of Channels

1

Çalışma Sıcaklığı

-40°C~100°C

Current Dc Forward If Max

50mA

Montaj Tipi

Through Hole

Yayın Yılı

2009

Nem Hassasiyeti (MSL)

1 (Unlimited)

Currentled Triggeriftmax

5mA

Static Dvdt Min

200V/μs

Number Of Elements

1

Parça Durumu

Active

Voltage Isolation

5000Vrms

Ambalaj

Tube

Voltageoff State

600V
