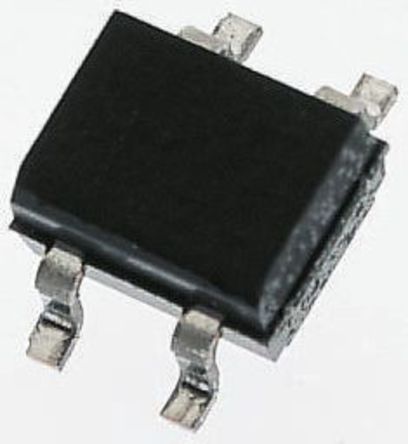

TLP160G(U,F)

Specifications

Kılıf / Paket

6-SOIC (0.173, 4.40mm Width), 4 Leads

Hold Current

600μA

Kurşunsuz

Lead Free

Parça Durumu

Last Time Buy

Voltageoff State

400V

Fabrika Tedarik Süresi

16 Weeks

Nominal Input Voltage

1.15V

Turn On Time

30μs

Max Input Current

50mA

Output Current

70mA

Rms Current Irms

70mA

Yayın Yılı

2002

Voltage Forward Vf Typ

1.15V

Montaj

Surface Mount

Zerocrossing Circuit

No

Max Input Voltage

1.3V

Reverse Breakdown Voltage

5V

Number Of Channels

1

Forward Current

10mA

Currentholdih

600μA Typ

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Pin Sayısı

4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Çıkış Tipi

Triac

Max Output Current

70mA

Static Dvdt Min

200V/μs

Turn On Delay Time

100 μs

Onay Kuruluşu

UR

Çalışma Sıcaklığı

-40°C~100°C

Voltage Isolation

2500Vrms
