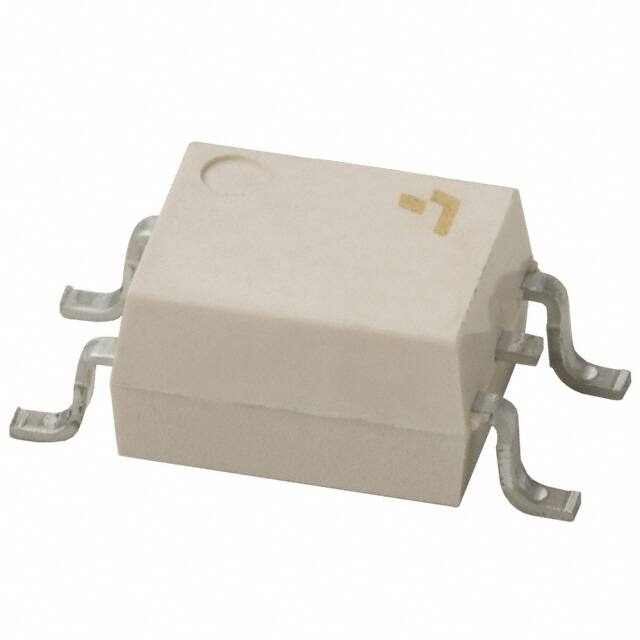

TLP160G(TPR,U,F)

Specifications

Nominal Input Voltage

1.15V

Turn On Time

30μs

Currentled Triggeriftmax

10mA

Output Current

70mA

Yayın Yılı

2010

Voltage Forward Vf Typ

1.15V

Kılıf / Paket

6-SOIC (0.173, 4.40mm Width), 4 Leads

Hold Current

600μA

Kurşunsuz

Lead Free

Parça Durumu

Last Time Buy

Output Current Per Channel

70mA

Voltageoff State

400V

Fabrika Tedarik Süresi

16 Weeks

Number Of Elements

1

Montaj

Surface Mount

Zerocrossing Circuit

No

Max Input Voltage

1.3V

Reverse Breakdown Voltage

5V

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Pin Sayısı

4

Forward Current

50mA

Currentholdih

600μA Typ

Static Dvdt Min

200V/μs

Turn On Delay Time

100 μs

Onay Kuruluşu

UR

Çalışma Sıcaklığı

-40°C~100°C

Voltage Isolation

2500Vrms

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Cut Tape (CT)

Çıkış Tipi

Triac

Max Output Current

70mA
