Specifications

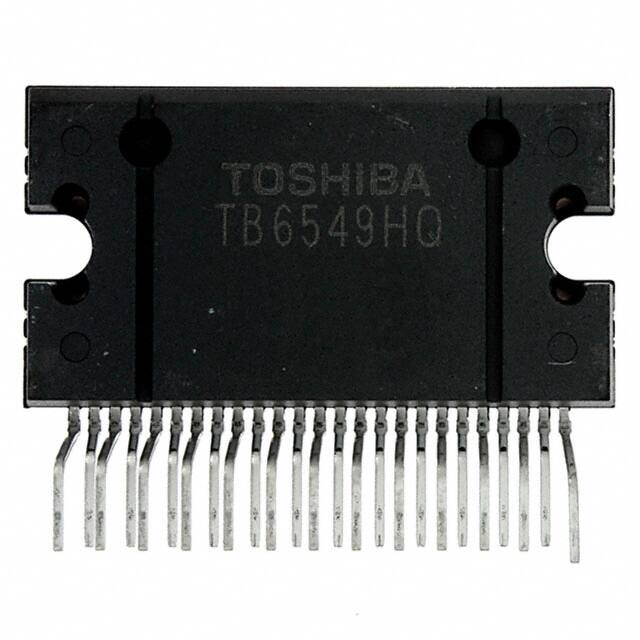

- Temel Parça No
- TB6549
- Logic Function
- AND
- Çalışma Sıcaklığı
- -20°C~85°C TA
- Montaj Tipi
- Through Hole
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Function
- Driver - Fully Integrated, Control and Power Stage
- Applications
- General Purpose
- Maks. Çalışma Sıcaklığı
- 85°C
- Parça Durumu
- Obsolete
- Yayın Yılı
- 2009
- Besleme Gerilimi
- 10V~27V
- Montaj
- Through Hole
- Radyasyon Dayanımı
- No
- Interface
- PWM, Serial
- Kılıf / Paket
- 25-SIP Formed Leads
- Fabrika Tedarik Süresi
- 14 Weeks
- Ambalaj
- Tube
- Output Configuration
- Half Bridge (2)
- Motor Type Ac Dc
- Brushed DC
- Min. Çalışma Sıcaklığı
- -20°C
- Min Supply Voltage
- 10V
- RoHS Durumu
- RoHS Compliant
- Max Supply Voltage
- 27V
- Pin Sayısı
- 25
- Tedarikçi Cihaz Paketi
- 25-HZIP
- Voltage Load
- 10V~27V
