Specifications
- Output Voltage
- 40V
- Applications
- General Purpose
- Parça Durumu
- Obsolete
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Function
- Driver - Fully Integrated, Control and Power Stage
- Yayın Yılı
- 2011
- Motor Type
- Stepper
- Motor Type Stepper
- Bipolar
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Temel Parça No

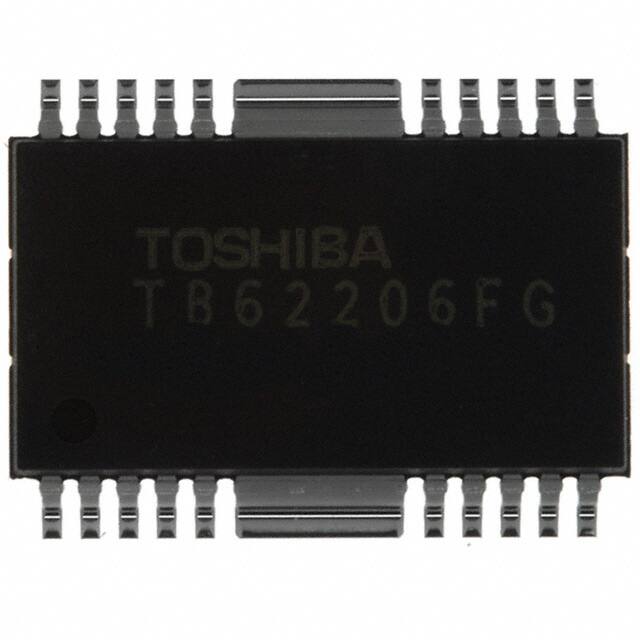

- TB62206
- Logic Function
- AND
- Terminal
- SMD/SMT
- Montaj Tipi
- Surface Mount
- Genişlik
- 8.8mm
- Nominal Supply Current
- 3.5mA
- Pin Sayısı
- 20
- Number Of Outputs
- 1
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 16.5mm
- Step Resolution
- 1, 1/2
- Yükseklik
- 2.3mm
- Voltage Load
- 13V~35V
- Interface
- Parallel
- Besleme Gerilimi
- 4.5V~5.5V
- Montaj
- Surface Mount
- Ambalaj
- Tape & Reel (TR)
- Output Configuration
- Half Bridge (4)
- Reach Svhc
- Unknown
- Kılıf / Paket
- 20-BSOP (0.346, 8.80mm Width) + 2 Heat Tabs
