SSM6L11TU(TE85L,F)

Specifications

Operating Mode

ENHANCEMENT MODE

REACH Uyumluluk Kodu

unknown

Input Capacitance Ciss Max Vds

268pF @ 10V

Fet Feature

Logic Level Gate

Turn On Delay Time

16 ns

Drain Currentmax Abs Id

0.5A

Çalışma Sıcaklığı

150°C TJ

Turn Off Delay Time

15 ns

Rds On Max Id Vgs

145m Ω @ 250MA, 4V

Gate To Source Voltage Vgs

-1.1V

Pin Sayısı

6

Montaj Tipi

Surface Mount

Montaj

Surface Mount

Drain To Source Voltage Vdss

20V

Polaritychannel Type

N-CHANNEL AND P-CHANNEL

Vgsth Max Id

1.1V @ 100μA

Number Of Channels

2

Fet Type

N and P-Channel

Yayın Yılı

2014

Max Power Dissipation

500mW

Parça Durumu

Obsolete

Fet Technology

METAL-OXIDE SEMICONDUCTOR

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

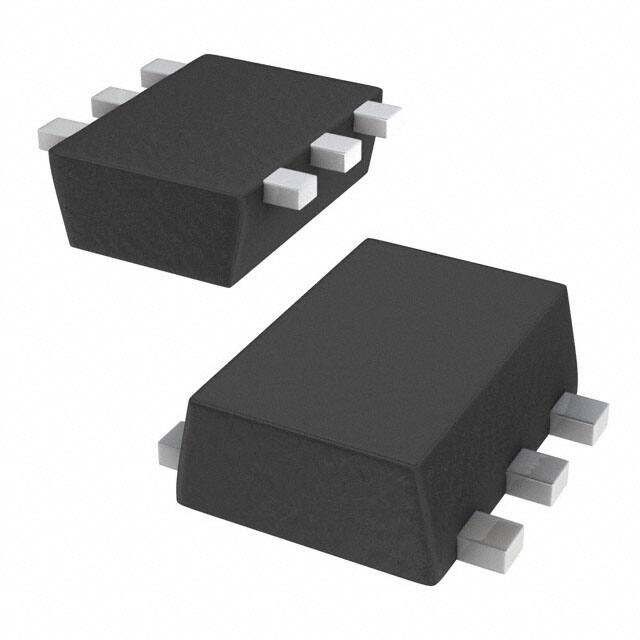

Kılıf / Paket

6-SMD, Flat Leads

Element Configuration

Dual

Ambalaj

Cut Tape (CT)

Continuous Drain Current Id

500mA
