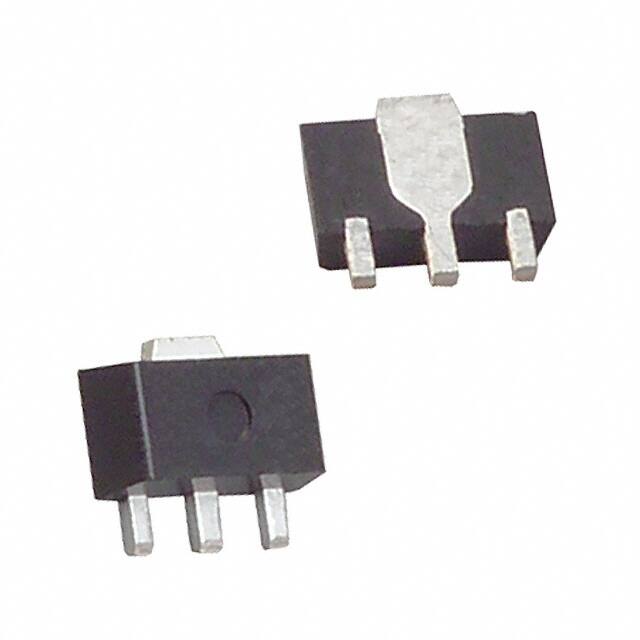

UA78L05ACPKG3

Specifications

Protection Features

Over Current, Over Temperature, Reverse Polarity, Short Circuit

Psrr

49dB (120Hz)

Dropout Voltage1nom

1.7V

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

2 (1 Year)

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Number Of Outputs

1

Output Configuration

Positive

Montaj

Surface Mount

Temel Parça No

UA78L05

Output Voltage

5V

ECCN Kodu

EAR99

Contact Plating

Tin

Output Voltage1

5V

Terminal Sayısı

3

Nominal Output Voltage

5V

Voltage Dropout Max

1.7V @ 40mA

Pin Sayısı

3

Output Voltage Accuracy

5 %

Quiescent Current

3.8mA

Max Output Current

100mA

Ambalaj

Tape & Reel (TR)

Dropout Voltage

1.7V

Genişlik

2.5mm

Parça Durumu

Active

Accuracy

5 %

Number Of Regulators

1

Voltage Tolerancemax

5%

Voltage Input Max

20V

Thickness

1.5mm

Terminal Formu

FLAT

Çıkış Tipi

Fixed

Kılıf / Paket

TO-243AA

Kurşunsuz

Lead Free

Pin Sayısı

3

Yükseklik

1.6mm

Kurşunsuz Kodu

yes

Terminal Pozisyonu

SINGLE

Uzunluk

4.5mm
