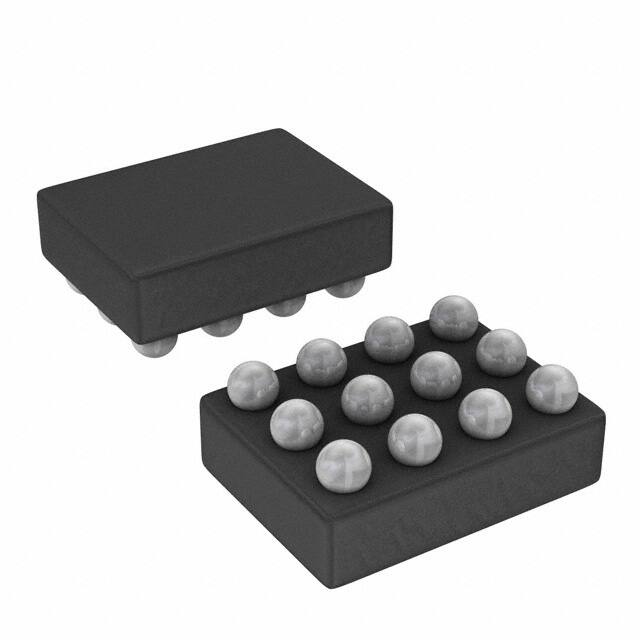

TS5A22366YFCR

Specifications

High Level Output Current

150mA

Uzunluk

0m

Turn Off Delay Time

325 ns

Min Supply Voltage

2.25V

Max Supply Voltage

5.5V

Switchon Timemax

350ns

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Onstate Resistance Max

1Ohm

Supply Type

Dual, Single

Nominal Supply Current

7μA

Direnç

1.8Ohm

Temel Parça No

TS5A22366

Tepe Reflow Sıcaklığı (°C)

260

Switch Time Ton Toff Max

374ns, 325ns

Thickness

475μm

Switch Circuit

SPDT

Genişlik

0m

Offstate Isolationnom

70 dB

RoHS Durumu

ROHS3 Compliant

Operating Supply Current

6μA

Polarity

Non-Inverting

Kurşunsuz Kodu

yes

Number Of Circuits

2

Current Leakage Isoff Max

50nA

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

JESD-609 Kodu

e1

Number Of Channels

1

ECCN Kodu

EAR99

Turn On Delay Time

374 ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fonksiyon Sayısı

2

Çalışma Sıcaklığı

-40°C~85°C TA

Switching

BREAK-BEFORE-MAKE

Reach Svhc

No SVHC

Low Level Output Current

150mA

Fabrika Tedarik Süresi

16 Weeks

Max Supply Current

14μA

Contact Plating

Copper, Silver, Tin

Charge Injection

168pC

Pin Sayısı

12
