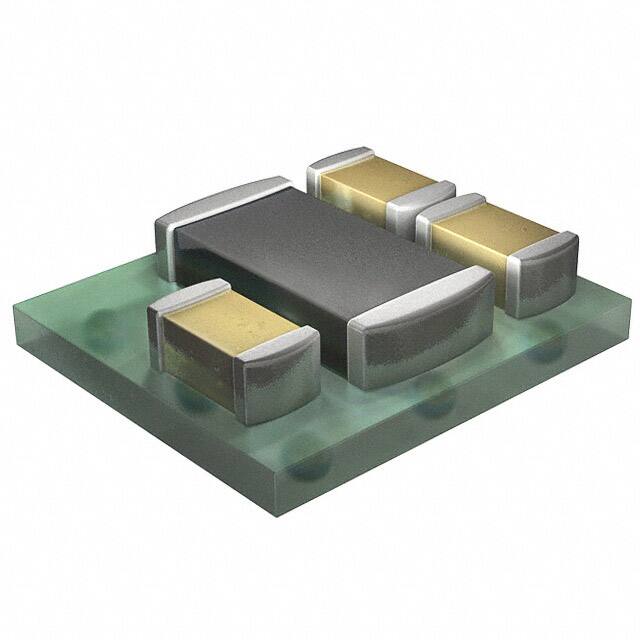

TPS81256SIPR

Specifications

Temel Parça No

TPS81256

Çıkış Tipi

Fixed

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Min Output Voltage

5V

Voltageoutput1

5V

Output Voltage

5V

Terminal Pozisyonu

UNSPECIFIED

Parça Durumu

Active

Analog Ic Other Type

SWITCHING REGULATOR

Çalışma Sıcaklığı

-40°C~85°C TA

Montaj

Surface Mount

Quiescent Current

37μA

Input Voltagenom

3.6V

Efficiency

91 %

Yükseklik

1mm

Frequency Switching

4MHz

Tepe Reflow Sıcaklığı (°C)

260

Additional Feature

ALSO OPERATES IN PFM CONTROL TECHNIQUE

Function

Step-Up

Output Power

3W

Kılıf / Paket

9-SMD Module

Current Output1

700mA

Terminal Formu

BALL

Control Mode

CURRENT-MODE

Fabrika Tedarik Süresi

12 Weeks

Voltage Input Min

2.5V

Number Of Outputs

1

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Digi-Reel®

Output Configuration

Positive

Kurşunsuz Kodu

yes

Genişlik

2.6mm

Output Current

550mA

Qualification Status

Not Qualified

Synchronous Rectifier

Yes

Control Technique

PULSE WIDTH MODULATION

Nem Hassasiyeti (MSL)

2 (1 Year)

Uzunluk

2.9mm
