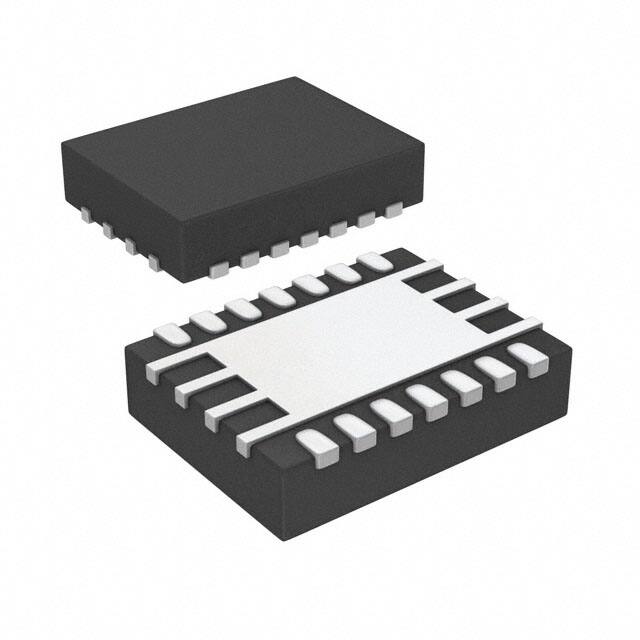

TPS63021DSJR

Specifications

Terminal Sayısı

14

Tepe Reflow Sıcaklığı (°C)

260

Contact Plating

Gold

JESD-609 Kodu

e4

Max Output Current

3A

Ambient Temperature Range High

85°C

Frequency Switching

2.4MHz

Topology

Buck-Boost

Control Technique

PULSE WIDTH MODULATION

Voltage Input Min

1.8V

Yükseklik

1mm

Kurşunsuz Kodu

yes

Temel Parça No

TPS63021

Kılıf / Paket

14-VFDFN Exposed Pad

Operating Supply Voltage

5.5V

Max Supply Voltage

5.5V

Synchronous Rectifier

Yes

Number Of Outputs

1

Input Voltagenom

3.6V

Max Duty Cycle

100 %

Pin Sayısı

14

Montaj

Surface Mount

Function

Step-Up/Step-Down

Efficiency

96 %

Thickness

900μm

Analog Ic Other Type

SWITCHING REGULATOR

Montaj Tipi

Surface Mount

Reach Svhc

No SVHC

Uzunluk

3mm

Radyasyon Dayanımı

No

Nominal Supply Current

25μA

Control Mode

CURRENT-MODE

Genişlik

4mm

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Output Voltage

3.3V

Output Configuration

Positive

Kurşunsuz

Lead Free

Quiescent Current

50μA

Parça Durumu

Active
