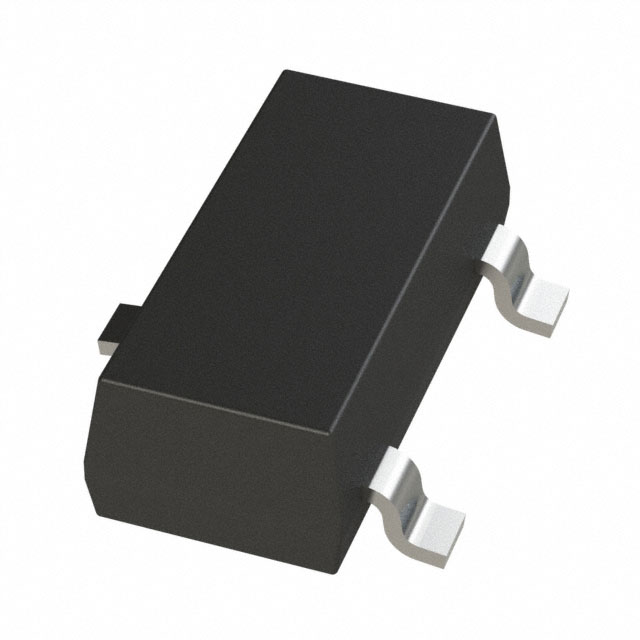

TMP235A2DBZR

Specifications

Temel Parça No

TMP235

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Additional Feature

SHORT CIRCUIT PROTECTION

Accuracymax

2 Cel

Sensor Type

Analog, Local

Operating Supply Voltage Min

2.3(V)

Body Length Or Diameter

2.92mm

Terminal Kaplaması

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Çalışma Sıcaklığı

-50°C~150°C TA

Sensorstransducers Type

TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

Housing

PLASTIC

Parça Durumu

Active

Temperature Sensor Gain

10MV/°C

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

12 Weeks

Sensing Temperature Local

-40°C~150°C

Çıkış Tipi

Analog Voltage

Body Height

1.22mm

Yüzey Montaj

YES

Package Type

SOT-23

Ambalaj

Tape & Reel (TR)

Resolution

10mV/°C

Operating Supply Voltage Max

5.5(V)

Accuracy

±2C(LSB)

Kılıf / Paket

TO-236-3, SC-59, SOT-23-3

Test Conditions

0°C ~ 70°C (-40°C ~ 150°C)

Besleme Gerilimi

2.3V~5.5V

Termination Type

SOLDER

Supply Current

0.012(mA)

Output Driver

CMOS

Accuracy Highest Lowest

±1.2°C (±2°C)

RoHS Durumu

ROHS3 Compliant

Operational Class

IC

Body Breadth

1.3 mm
