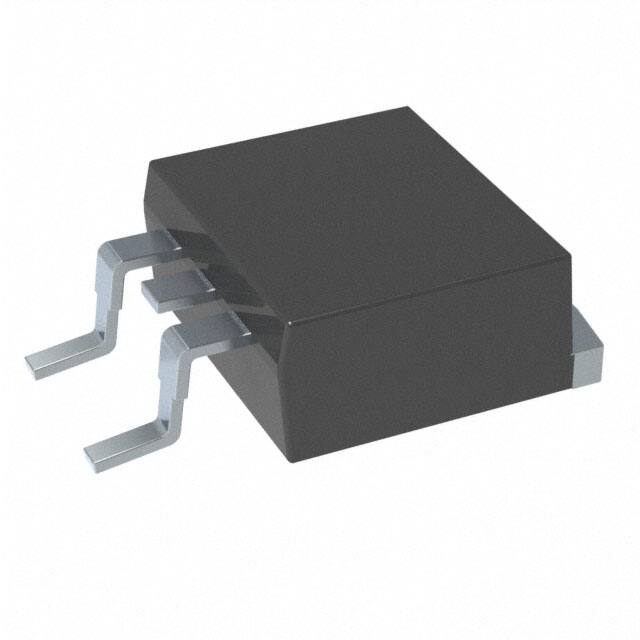

SM74611KTTR

Specifications

Radyasyon Dayanımı

No

Operating Temperature Junction

-40°C~125°C

Kurşunsuz Kodu

yes

Maks. Çalışma Sıcaklığı

125°C

Uzunluk

10.18mm

Reach Svhc

No SVHC

Montaj Tipi

Surface Mount

Voltage Forward Vf Max If

26mV @ 8A

Number Of Elements

1

Ambalaj

Tape & Reel (TR)

Max Reverse Voltage Dc

30V

Average Rectified Current

15A

Montaj

Surface Mount

Fabrika Tedarik Süresi

6 Weeks

Speed

Standard Recovery >500ns, > 200mA (Io)

Parça Durumu

Active

Nem Hassasiyeti (MSL)

3 (168 Hours)

Quiescent Current

0A

Nominal Input Voltage

30V

Reverse Voltage

28V

Current Reverse Leakage Vr

300nA @ 28V

Forward Current

8A

Max Power Dissipation

575mW

Min. Çalışma Sıcaklığı

-40°C

Kılıf / Paket

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Weight

1.946308g

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Max Supply Voltage

30V

Temel Parça No

SM74611

Number Of Phases

1

Case Connection

CATHODE

Min Supply Voltage

100mV

Element Configuration

Single

Tepe Reflow Sıcaklığı (°C)

245

Applications

GENERAL PURPOSE

Yükseklik

4.83mm

Kurşunsuz

Contains Lead

Terminal Formu

GULL WING

JESD-609 Kodu

e3

Max Repetitive Reverse Voltage Vrrm

28V
