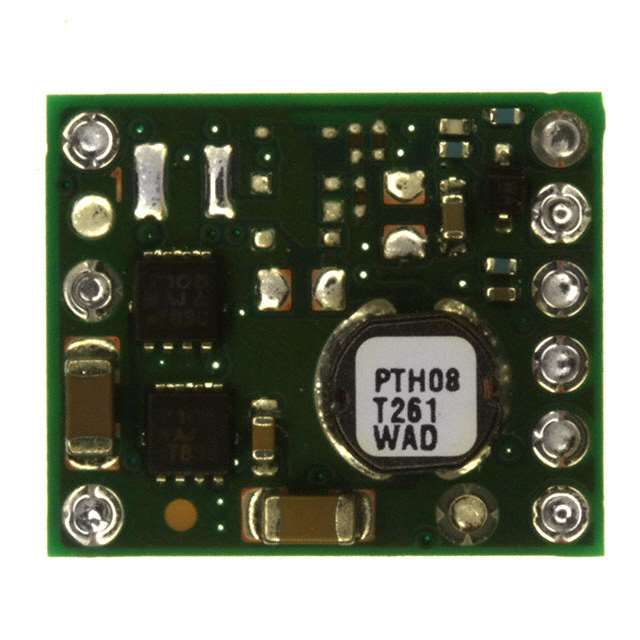

PTH08T261WAD

Specifications

Seri

PTH08T261W

Montaj Tipi

Through Hole

Efficiency

95%

Min Input Voltage Dc

4.5V

JESD-609 Kodu

e3

Input Voltagenom

5V

Control Mode

VOLTAGE-MODE

Composition

Ceramic

Tip

Non-Isolated PoL Module

Terminal Sayısı

10

Protections

OUTPUT OVER CURRENT;THERMAL

Yüzey Montaj

NO

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Fonksiyon Sayısı

1

Flammability Rating

UL94 V-0

Depth

15.75mm

Yükseklik

8mm

Current Output1

3A

Applications

ITE (Commercial)

Isolation

Non-Isolated

Weight

2.5g

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Thickness

7.5mm

Min Output Voltage

690mV

Max Output Voltage

5.5V

Kurşunsuz

Lead Free

Temel Parça No

TH08T261

RoHS Durumu

ROHS3 Compliant

Trimadjustable Output

YES

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

6 Weeks

Frekans

300kHz

Reach Svhc

No SVHC

Output Power

16.5W

Max Power Dissipation

16.5W

Kılıf / Paket

10-DIP Module

Output Current

3A

Boyut / Ölçü

0.75Lx0.62W x 0.34 H 19.1mmx15.7mmx8.6mm

Max Input Voltage Dc

14V
