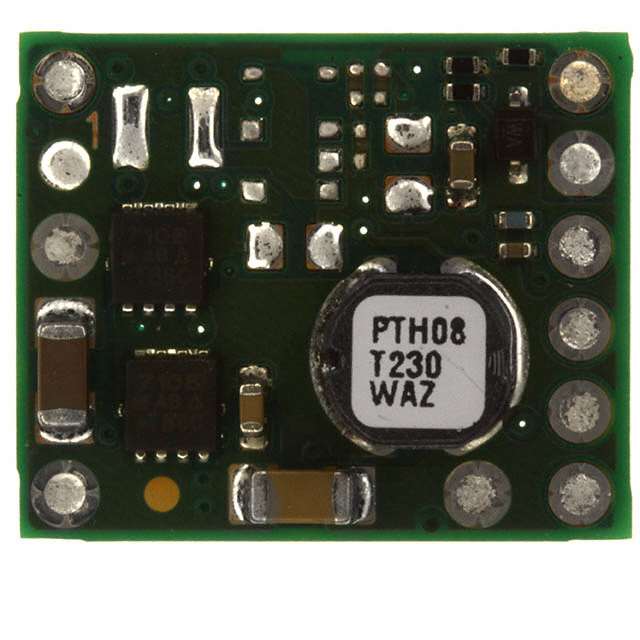

PTH08T230WAZ

Specifications

Input Voltagenom

5V

JESD-609 Kodu

e1

Kurşunsuz Kodu

yes

Min Input Voltage Dc

4.5V

Efficiency

95%

Montaj Tipi

Surface Mount

Seri

PTH08T230W

Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Fonksiyon Sayısı

1

Yüzey Montaj

NO

Protections

OUTPUT OVER CURRENT;THERMAL

Terminal Sayısı

10

Tip

Non-Isolated PoL Module

Control Mode

VOLTAGE-MODE

Nem Hassasiyeti (MSL)

3 (168 Hours)

Parça Durumu

Active

Isolation

Non-Isolated

Applications

ITE (Commercial)

Current Output1

6A

Yükseklik

9.09mm

Depth

18.92mm

Fabrika Tedarik Süresi

6 Weeks

ECCN Kodu

EAR99

Trimadjustable Output

YES

RoHS Durumu

ROHS3 Compliant

Max Output Voltage

5.5V

Temel Parça No

TH08T230

Kurşunsuz

Lead Free

Thickness

7.5mm

Min Output Voltage

690mV

Özellikler

Remote On/Off, OCP, OTP, UVLO

Contact Plating

Copper, Silver, Tin

Boyut / Ölçü

0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm

Output Current

6A

Kılıf / Paket

10-SMD Module

Max Power Dissipation

33W

Output Power

33W

Reach Svhc

No SVHC

Frekans

300kHz

Additional Feature

REMOTE SHUTDOWN
