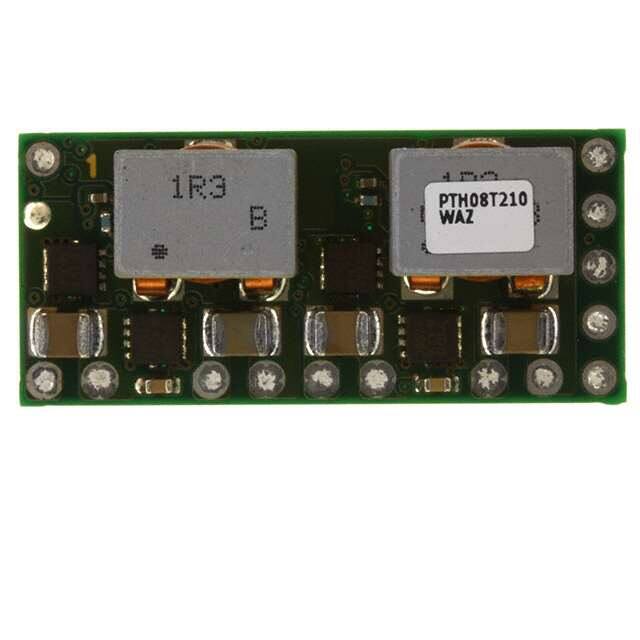

PTH08T210WAZ

Specifications

Input Voltagenom

12V

JESD-609 Kodu

e1

Efficiency

93%

Min Input Voltage Dc

5.5V

Montaj Tipi

Surface Mount

Seri

PTH08T210W

Fonksiyon Sayısı

1

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Yüzey Montaj

NO

Protections

OUTPUT OVER CURRENT;THERMAL

Terminal Sayısı

14

Tip

Non-Isolated PoL Module

Control Mode

VOLTAGE-MODE

Parça Durumu

Active

Nem Hassasiyeti (MSL)

3 (168 Hours)

Isolation

Non-Isolated

Applications

ITE (Commercial)

Current Output1

30A

Yükseklik

9mm

Depth

28.45mm

Fabrika Tedarik Süresi

6 Weeks

ECCN Kodu

EAR99

Trimadjustable Output

YES

Nominal Output Voltage

3.6V

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Temel Parça No

TH08T210

Max Output Voltage

3.6V

Min Output Voltage

700mV

Thickness

8.75mm

Özellikler

Remote On/Off, OCP, OTP, UVLO

Boyut / Ölçü

1.37Lx0.62W x 0.37 H 34.8mmx15.8mmx9.4mm

Output Current

30A

Max Power Dissipation

90W

Kılıf / Paket

14-SMD Module

Min Supply Voltage

5.5V

Max Supply Voltage

14V

Output Power

108W

Reach Svhc

No SVHC

Frekans

480kHz
