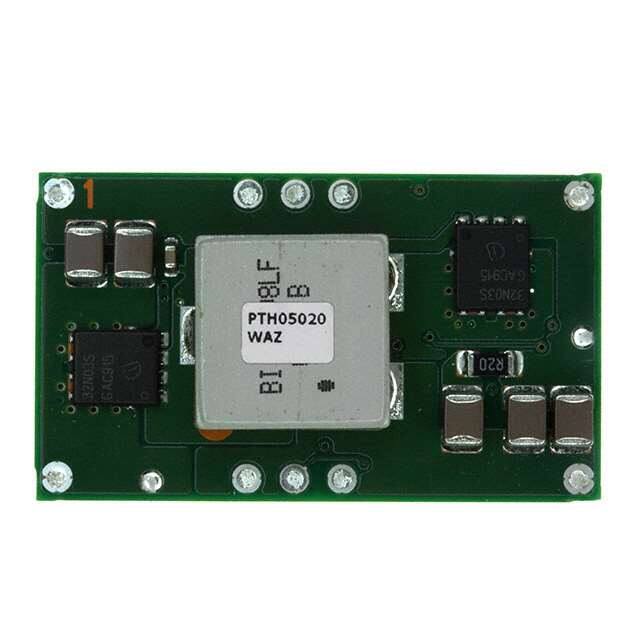

PTH05020WAZ

Specifications

JESD-609 Kodu

e1

Input Voltagenom

5V

Seri

PTH05020W

Montaj Tipi

Surface Mount

Efficiency

95%

Terminal Sayısı

10

Protections

OUTPUT OVER CURRENT;THERMAL

Yüzey Montaj

YES

Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Fonksiyon Sayısı

1

Control Mode

VOLTAGE-MODE

Voltage Input Min

4.5V

Tip

Non-Isolated PoL Module

Isolation

Non-Isolated

Nem Hassasiyeti (MSL)

3 (168 Hours)

Parça Durumu

Active

Depth

22.1mm

Yükseklik

9mm

Current Output1

22A

Applications

ITE (Commercial)

Trimadjustable Output

YES

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

6 Weeks

Özellikler

Remote On/Off, OCP, OTP, UVLO

Min Output Voltage

800mV

Thickness

8.75mm

Max Output Voltage

3.6V

Temel Parça No

TH05020

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Boyut / Ölçü

1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.6mm

Output Power

79W

Switching Frequencymax

300kHz

Max Power Dissipation

79W

Kılıf / Paket

10-SMD Module

Output Current

22A

HTS Kodu

8504.40.85.00

Number Of Outputs

1

Ambalaj

Tray

Additional Feature

REMOTE SHUTDOWN
