POMAP5912ZDY

Specifications

Bit Size

16

Additional Interfaces

1-Wire/HDQ, AC97, I2C, I2S, IrDA, McBSP, MCSI, MICROWIRE, MMC/SD/SDIO, SPI, UART

Internal Bus Architecture

MULTIPLE

Terminal Formu

BALL

Low Power Mode

YES

Ethernet

10/100Mbps (1)

HTS Kodu

8542.31.00.01

Jesd30 Code

S-PBGA-B289

Gerilim

1.65V

Power Supplies

1.61.8/2.75/3.3V

Parça Durumu

Obsolete

Coprocessorsdsp

Signal Processing; C55x, System Control; CP15

Kılıf / Paket

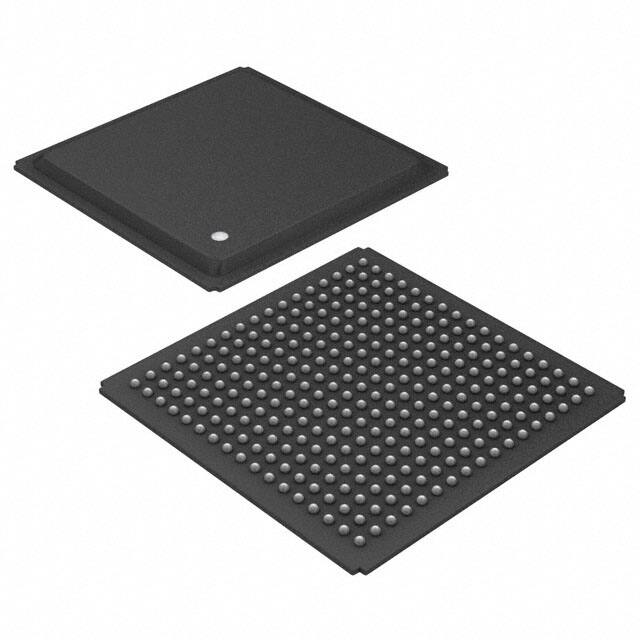

289-BGA

Number Of Coresbus Width

1 Core 32-Bit

Address Bus Width

26

Display Interface Controllers

Keyboard, LCD

Besleme Gerilimi

1.6V

Ram Words

163840

Frekans

192MHz

Çalışma Sıcaklığı

-40°C~85°C TC

Usb

USB 1.1 (1), USB 1.x (2)

Kurşunsuz

Lead Free

Pin Sayısı

289

Uzunluk

19mm

Ambalaj

Tray

Seri

OMAP-59xx

Core Processor

ARM926EJ-S

Terminal Adımı

1mm

Format

FIXED POINT

Security Features

Cryptography, Random Number Generator

RoHS Durumu

Non-RoHS Compliant

Terminal Pozisyonu

BOTTOM

Ram Controllers

LPDDR

Temel Parça No

OMAP5912

Graphics Acceleration

No

Maks. Oturma Yüksekliği

2.32mm

External Data Bus Width

16

Boundary Scan

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Io

1.8V 2.75V 3.3V
