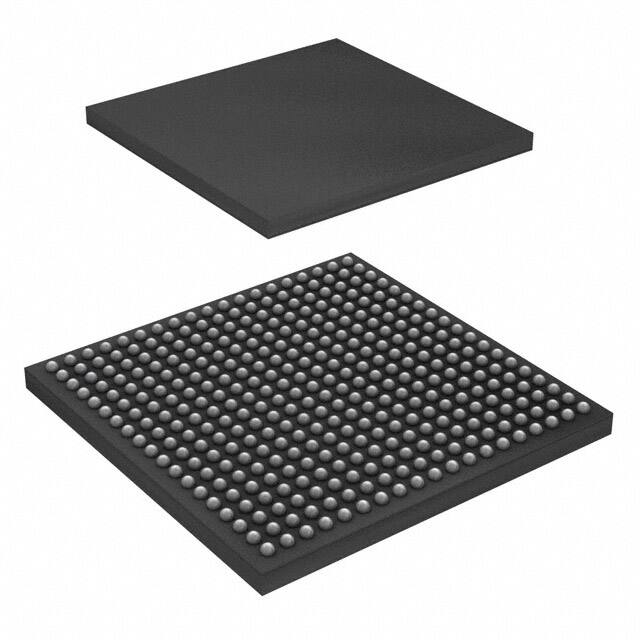

OMAPL138BGWTMEP

Specifications

Ram Controllers

SDRAM

Number Of Timers

8

Graphics Acceleration

No

Barrel Shifter

NO

Yükseklik

1.4mm

Frekans

345MHz

Pin Sayısı

361

Operating Supply Voltage

3.3V

Kılıf / Paket

361-LFBGA

Kurşunsuz

Contains Lead

Sata

SATA 3Gbps (1)

Usage Level

Military grade

Terminal Formu

BALL

Boundary Scan

YES

Rom Programmability

MROM

Integrated Cache

YES

Thickness

900μm

RoHS Durumu

Non-RoHS Compliant

Terminal Adımı

0.8mm

Coprocessorsdsp

Signal Processing; C674x, System Control; CP15

Çalışma Sıcaklığı

-55°C~125°C TJ

Fabrika Tedarik Süresi

6 Weeks

Ram Words

8192

Tepe Reflow Sıcaklığı (°C)

220

Core Architecture

ARM

Additional Interfaces

HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART

Ethernet

10/100Mbps (1)

Uzunluk

16mm

Memory Types

L2 Cache, ROM, SRAM

Terminal Pozisyonu

BOTTOM

Contact Plating

Lead, Tin

Temel Parça No

OMAPL138

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Montaj

Surface Mount

JESD-609 Kodu

e0

Nem Hassasiyeti (MSL)

3 (168 Hours)

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Display Interface Controllers

LCD

Low Power Mode

YES

Interface

SPI
