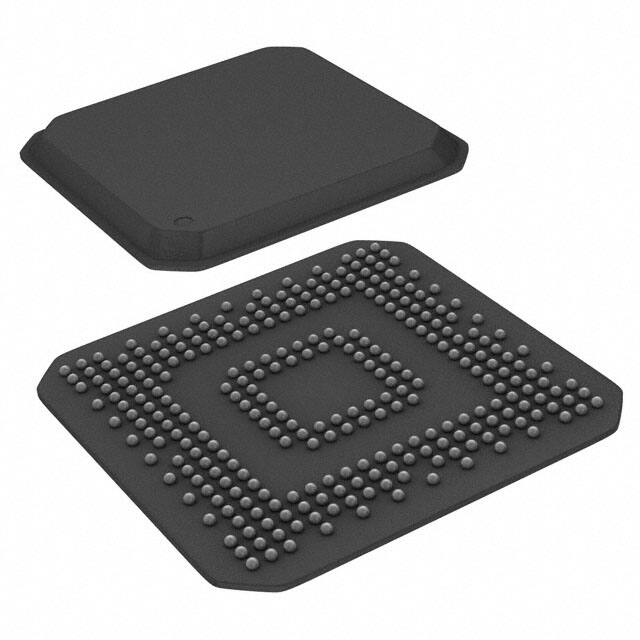

OMAP5910JGZG2

Specifications

On Chip Program Rom Width

16

Terminal Pozisyonu

BOTTOM

Uzunluk

12mm

Memory Types

FLASH

Tepe Reflow Sıcaklığı (°C)

220

Number Of Dma Channels

6

Additional Interfaces

1-Wire/HDQ, AC97, I2C, I2S, IrDA, McBSP, MCSI, MICROWIRE, MMC/SD, SPI, UART

Fabrika Tedarik Süresi

6 Weeks

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

0.5mm

Çalışma Sıcaklığı

-40°C~85°C TC

Coprocessorsdsp

Signal Processing; C55x, System Control; CP15

Address Bus Width

25

Integrated Cache

YES

Boundary Scan

YES

Terminal Formu

BALL

Rom Programmability

MROM

Operating Supply Voltage

1.6V

Kurşunsuz

Contains Lead

Kılıf / Paket

289-TFBGA

Frekans

150MHz

Number Of Timerscounters

6

Pin Sayısı

289

Bit Size

16

Memory Size

32kB

Barrel Shifter

NO

Graphics Acceleration

No

Ram Controllers

SDRAM

Terminal Sayısı

289

Data Bus Width

32b

Gerilim

1.675V

HTS Kodu

8542.31.00.01

Format

FIXED POINT

Pin Sayısı

289

Internal Bus Architecture

MULTIPLE

Core Processor

ARM9TDMI

Nominal Supply Current

170mA

Seri

OMAP-59xx

Upsucsperipheral Ics Type

DIGITAL SIGNAL PROCESSOR, MIXED

Ambalaj

Tray
