Volume pricing
- 1+ pcs$6.05
- 10+ pcs$5.71
- 100+ pcs$5.38
- 500+ pcs$5.08
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Output Polarity
- TRUE
- Besleme Gerilimi
- 5V
- Turn Off Delay Time
- 33.5 ns
- Giriş Tipi
- TTL
- Thickness
- 420μm
- Fonksiyon Sayısı
- 1
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Tape & Reel (TR)
- Gate Type
- N-Channel MOSFET
- Rise Fall Time Typ
- 7ns 3.5ns
- Kurşunsuz Kodu
- yes
- Besleme Gerilimi
- 4.5V~5.5V
- Turn Off Time
- 0.05 µs
- Fall Time Typ
- 3.5 ns
- Uzunluk
- 0m
- Current Peak Output Source Sink
- 1.2A 5A
- Output Characteristics
- OPEN-DRAIN
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Propagation Delay
- 35 ns
- Output Current
- 5A
- Yükseklik
- 675μm
- Output Peak Current Limitnom
- 5A
- Fabrika Tedarik Süresi
- 6 Weeks

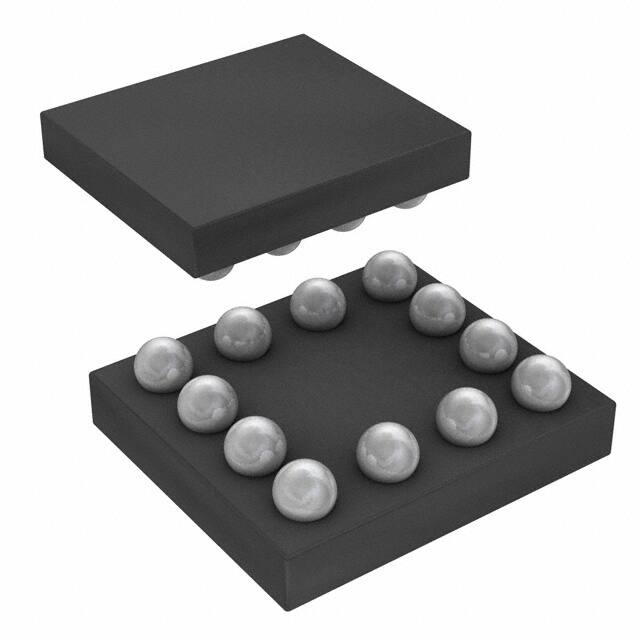

- Kılıf / Paket
- 12-WFBGA, DSBGA
- Terminal Pozisyonu
- BOTTOM
- Logic Voltagevil Vih
- 1.76V 1.89V
- Terminal Formu
- BALL
- Temel Parça No
- LMG1205
- High Side Driver
- YES
- Turn On Delay Time
- 35 ns
- Lifecycle Status
- ACTIVE (Last Updated: 6 days ago)
- Channel Type
- Independent
- Montaj Tipi
- Surface Mount
- Yüzey Montaj
- YES
- Turn On Time
- 0.05 µs
- Genişlik
- 0m
- Driver Configuration
- Half-Bridge
- Terminal Sayısı
- 12
- Terminal Adımı
- 0.4mm
- Nominal Supply Current
- 2mA
