LM73CIMK-0/NOPB

Specifications

Montaj

Surface Mount

Min Supply Voltage Dc

2.7V

RoHS Durumu

ROHS3 Compliant

Quiescent Current

495μA

Accuracymax

2.5 Cel

Thickness

870μm

Test Conditions

-10°C ~ 80°C (-40°C ~ 150°C)

Operating Supply Current

320μA

Reach Svhc

No SVHC

Kılıf / Paket

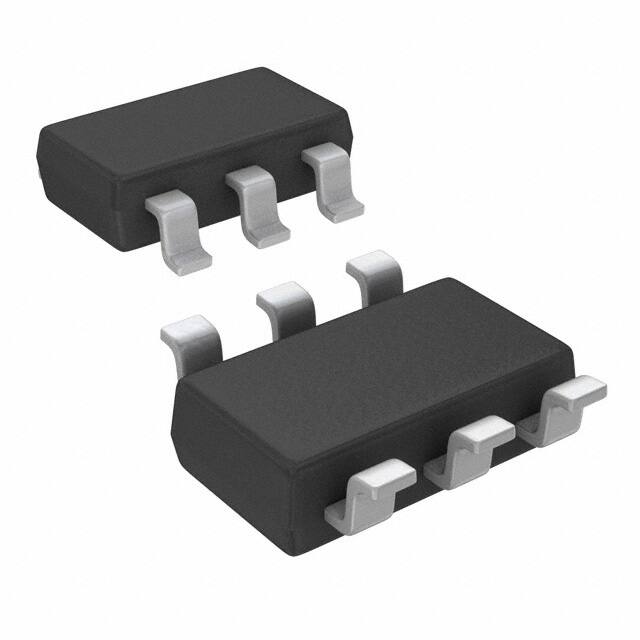

SOT-23-6 Thin, TSOT-23-6

Fabrika Tedarik Süresi

16 Weeks

Output Current

2μA

Sensorstransducers Type

TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

Yükseklik

1.1mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

2.9mm

Contact Plating

Gold

Max Supply Voltage Dc

5.5V

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Besleme Gerilimi

2.7V~5.5V

Ambalaj

Tape & Reel (TR)

Power Supplies

3/5V

Montaj Tipi

Surface Mount

Genişlik

1.6mm

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

JESD-609 Kodu

e4

Kurşunsuz

Lead Free

Temel Parça No

LM73

HTS Kodu

8542.39.00.01

Accuracy Highest Lowest

±1.5°C (±2.5°C)

Sensor Type

Digital, Local

Resolution

13 b

Parça Durumu

Active

Özellikler

One-Shot, Output Switch, Programmable Resolution, Shutdown Mode

Çıkış Tipi

I2C/SMBus

Output Voltage

400mV

Number Of Bits

14

Çalışma Sıcaklığı

-40°C~150°C

Nominal Supply Current

320μA
