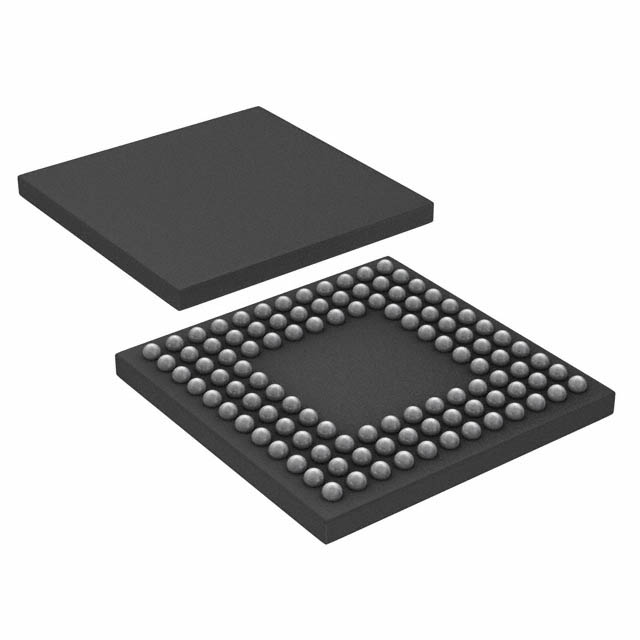

LM3S2965-IBZ50-A2

Specifications

Dac Channels

NO

Supply Voltagemax Vsup

2.75V

Terminal Sayısı

108

Tepe Reflow Sıcaklığı (°C)

260

Watchdog Timers

Yes

JESD-609 Kodu

e1

Seri

Stellaris® ARM® Cortex®-M3S 2000

Yükseklik

1.5mm

Kurşunsuz Kodu

yes

Oscillator Type

Internal

Terminal Formu

BALL

Memory Size

256kB

Format

FIXED-POINT

Temel Parça No

LM3S2965

Operating Supply Voltage

3.3V

Kılıf / Paket

108-LFBGA

Program Memory Type

FLASH

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Pin Sayısı

108

Pin Sayısı

108

Core Processor

ARM® Cortex®-M3

Has Adc

YES

Montaj

Surface Mount

Core Size

32-Bit

Frekans

50MHz

Bit Size

32

Pwm Channels

YES

Ram Size

64K x 8

Number Of Uart Channels

3

Peripherals

Brown-out Detect/Reset, POR, PWM, WDT

Upsucsperipheral Ics Type

MICROCONTROLLER, RISC

Dma Channels

NO

Boundary Scan

YES

Thickness

950μm

Besleme Gerilimi

2.5V

Uzunluk

10mm

Montaj Tipi

Surface Mount

Interface

CAN, I2C, IrDA, SPI, UART, USART

Radyasyon Dayanımı

No

Number Of Ios

56
