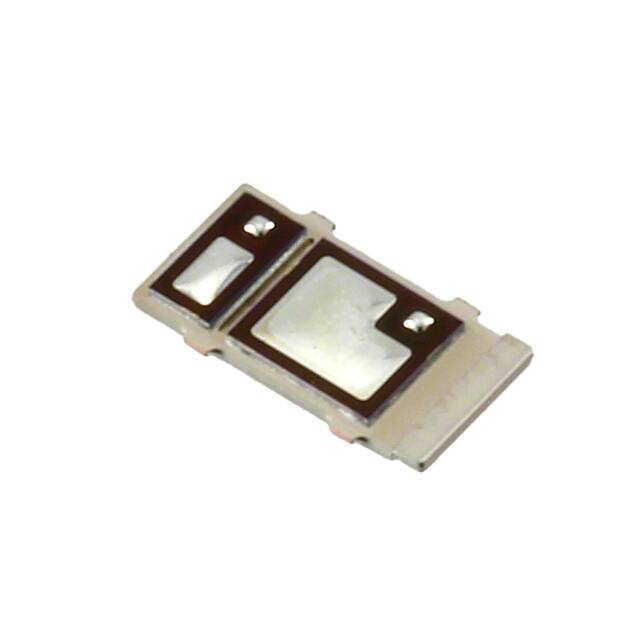

CSD87588NT

Specifications

Continuous Drain Current Id

25A

Uzunluk

5mm

Rise Time

36.7ns

Terminal Formu

NO LEAD

Contact Plating

Gold

Montaj

Surface Mount

Control Technique

PULSE WIDTH MODULATION

Çalışma Sıcaklığı

-55°C~150°C TJ

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

8 Weeks

Gate Charge Qg Max Vgs

4.1nC @ 4.5V

Max Power Dissipation

6W

Number Of Outputs

1

JESD-609 Kodu

e4

Turn Off Delay Time

20.1 ns

Max Output Current

25A

Analog Ic Other Type

SWITCHING REGULATOR

Genişlik

2.5mm

Kılıf / Paket

5-LGA

Fall Time Typ

6.3 ns

Number Of Channels

2

Rds On Max Id Vgs

9.6m Ω @ 15A, 10V

Terminal Pozisyonu

BOTTOM

Temel Parça No

CSD87588

Yükseklik

480μm

Fet Type

2 N-Channel (Half Bridge)

Turn On Delay Time

12.1 ns

Drain To Source Voltage Vdss

30V

Fet Feature

Logic Level Gate

Switcher Configuration

BUCK

Drain To Source Breakdown Voltage

30V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Input Voltagenom

12V

Terminal Sayısı

5

Tepe Reflow Sıcaklığı (°C)

260

Max Input Voltage

24V

Max Output Voltage

1.3V

Vgsth Max Id

1.9V @ 250μA
