Specifications

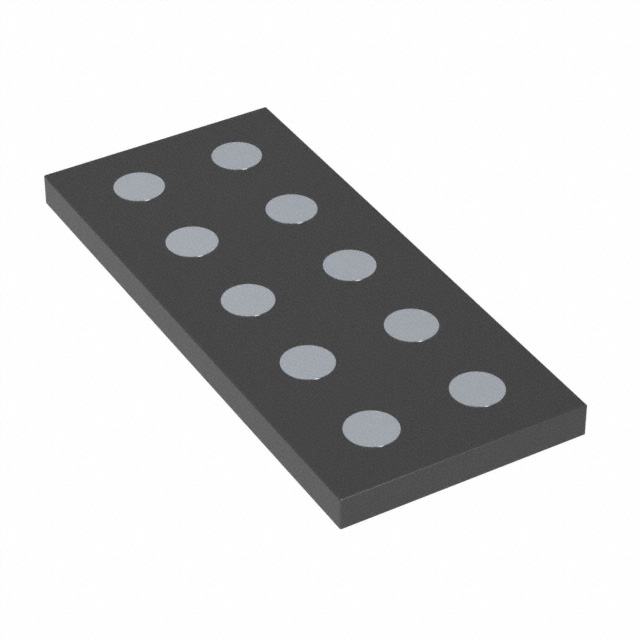

- Temel Parça No
- CSD87501
- Pin Sayısı
- 10
- Yükseklik
- 200μm
- Montaj Tipi
- Surface Mount
- Seri
- NexFET™
- Fet Type
- 2 N-Channel (Dual) Common Drain
- Transistor Element Material
- SILICON
- Turn On Delay Time
- 164 ns
- Number Of Elements
- 2
- Thickness
- 200μm
- Turn Off Delay Time
- 709 ns
- Kılıf / Paket
- 10-XFLGA
- Genişlik
- 1.47mm
- Fall Time Typ
- 712 ns
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Number Of Channels
- 2
- Terminal Pozisyonu
- BOTTOM
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 12 Weeks
- Vgsth Max Id
- 2.3V @ 250μA
- Ambalaj
- Tape & Reel (TR)
- Transistor Application
- SWITCHING
- Kurşunsuz
- Lead Free
- Feedback Capmax Crss
- 198 pF
- RoHS Durumu
- ROHS3 Compliant
- Gate Charge Qg Max Vgs
- 40nC @ 10V
- Gate To Source Voltage Vgs
- 20V
- Operating Mode
- ENHANCEMENT MODE
- Lifecycle Status
- ACTIVE (Last Updated: 4 days ago)
- Drain To Source Resistance
- 6.6mOhm
- Max Power Dissipation
- 2.5W
- Rise Time
- 260ns
- Uzunluk
- 3.37mm
- Fet Feature
- Logic Level Gate
- Continuous Drain Current Id
- 14A
- Drain To Source Voltage Vdss
- 30V
- Terminal Formu
- NO LEAD
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
