Specifications
- Charge Current Max
- 8.064A
- Switchingfrequency
- 700kHz
- Threshold Voltage
- +4V
- Control Mode
- VOLTAGE-MODE
- JESD-609 Kodu
- e4
- Nem Hassasiyeti (MSL)
- 2 (1 Year)
- Yüzey Montaj
- YES
- Fonksiyon Sayısı
- 1
- Fabrika Tedarik Süresi
- 6 Weeks
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Supply Currentmax Isup
- 12mA
- Analog Ic Other Type
- BATTERY CHARGE CONTROLLER
- Output Current
- 4A

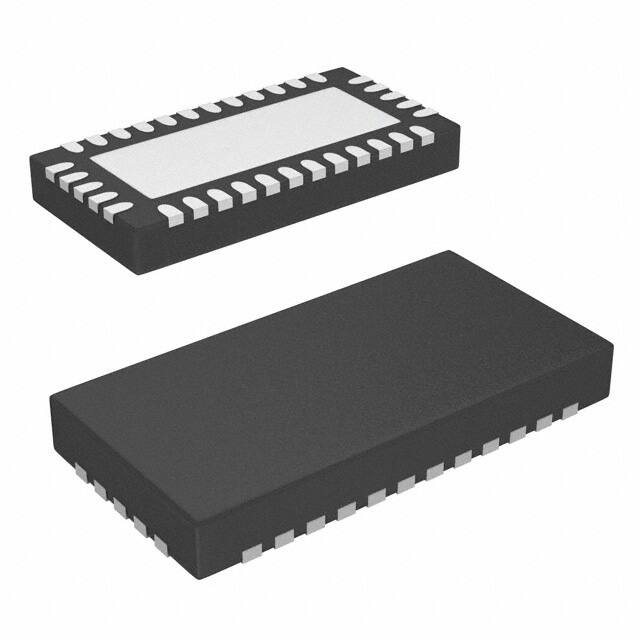

- Kılıf / Paket
- 34-VFQFN Exposed Pad
- Temel Parça No
- BQ24765
- Thickness
- 900μm
- Lifecycle Status
- ACTIVE (Last Updated: 3 days ago)
- Montaj Tipi
- Surface Mount
- Terminal Sayısı
- 34
- Genişlik
- 7mm
- Ambalaj
- Tape & Reel (TR)
- Fault Protection
- Over Current, Over Temperature
- Control Technique
- PULSE WIDTH MODULATION
- Switcher Configuration
- BUCK
- Terminal Pozisyonu
- QUAD
- Uzunluk
- 3.5mm
- ECCN Kodu
- EAR99
- Max Supply Voltage
- 24V
- Min Input Voltage
- 7V
- Number Of Cells
- 2 ~ 4
- Battery Pack Voltage
- 19.2V Max
- Output Voltage
- 19.2V
- Çalışma Sıcaklığı
- -40°C~125°C TJ
- Battery Chemistry
- Multi-Chemistry
- Kurşunsuz
- Lead Free
- Input Voltagenom
- 20V
- Tepe Reflow Sıcaklığı (°C)
- 260
- Pin Sayısı
- 34
- HTS Kodu
- 8542.39.00.01
