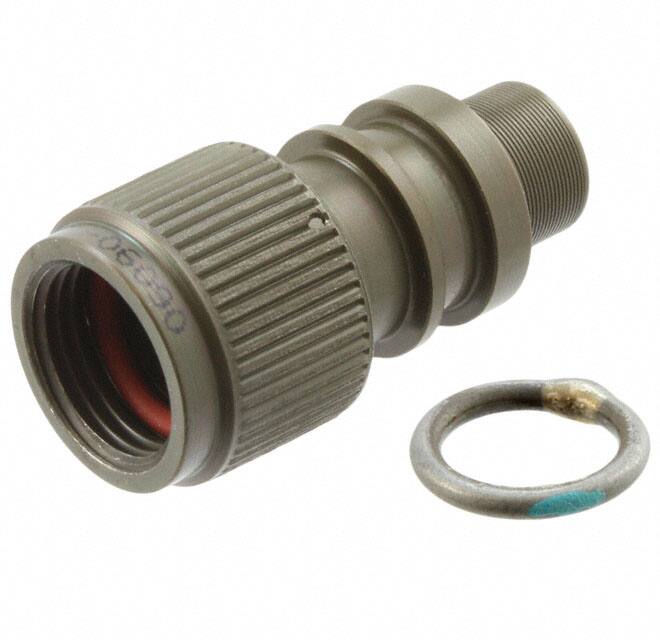

TXR40AB00-0807AI

Specifications

Yayın Yılı

2015

Tip

Backshell, Heat Shrink Adapter

Ingress Protection

Environment Resistant

Seri

TXR

Maks. Çalışma Sıcaklığı

175°C

Shell Sizes

9

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shielding

Shielded

Backshell Materialu2009

Aluminum

Temel Ürün No

TXR40AB00

Connector General Specification Numberu2009

MIL-DTL-38999 Series III/Class C,F,K,W, MIL-DTL-38999 Series IV/Class C,F,W, MIL-DTL-38999 Series IV/Class C,W, MIL-DTL-38999 Series IV/Class F,W

RoHS Durumu

Non-RoHS Compliant

Te Internal

757063-000

Material

Aluminum Alloy

Plating

Cadmium

Cable Exit

180°

Shell Style

Straight

Alias

4-1195899-5

Paket

Bulk

Cable Diameter Rangeu2009

5.6 – 8.9u2009mmu2009[u2009.219 – .35u2009inu2009]

Mil Type

MIL-DTL-38999 III, IV

Elv

Non-Compliant

Shell Size Insert

9 A

Adapter Angleu2009

Straight

For Use Withrelated Products

MIL-DTL-38999 Series III, IV

Fabrika Tedarik Süresi

26 Weeks

Kurşunsuz

Not Applicable

Özellikler

Tinel Lock

Shell Material

Aluminum Alloy

Diameter Outside

0.709 (18.00mm)

Adapter Plating Materialu2009

Cadmium (AMS-QQ-P-416, Type II, Class 3)

Mating Style

Self Locking

Ürün Durumu

Active

Thread Size

M12x1

Renk

Olive Drab

Min. Çalışma Sıcaklığı

-65°C

Te Internal Description

TXR40AB00-0807AI

Includes

6 pcs - 2 pc Backshell, 1 Braid, 2 O-Rings, 1 Tinel Ring

Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Parça Durumu

Active
