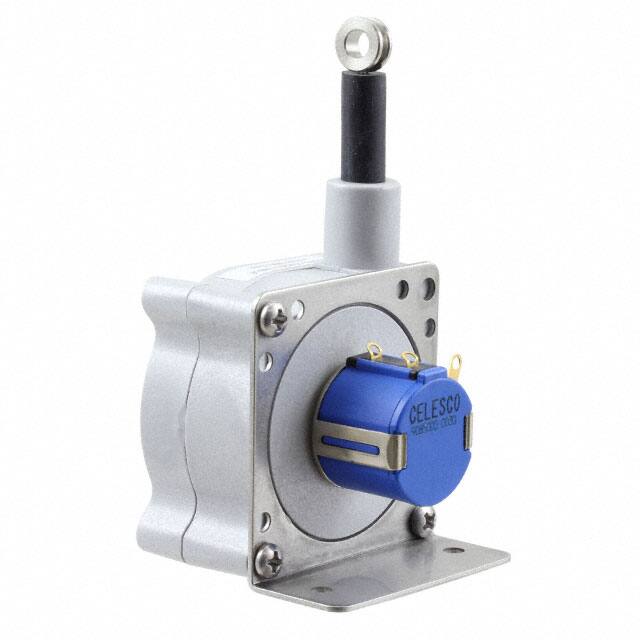

SP1-25

Specifications

Usage Level

Commercial grade

Actuator Type

String Potentiometer

Technology

Resistive

Tolerans

±10%

Accuracy

0.25 %

Direnç

10kOhms

Çıkış Tipi

Analog - Voltage

Housing Material

Polycarbonate

Paket

Box

Çalışma Sıcaklığı

-18°C~70°C

Operating Supply Voltage

30 V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

4 Weeks

Power Rating

2.0000 W

Maks. Çalışma Sıcaklığı

+ 70 C

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Temel Ürün No

SP1

Ürün Durumu

Active

Kurşunsuz

Lead Free

Terminal Stili

Solder Lug

Screening Level

Commercial

For Measuring

Linear Position

Linear Range

0 ~ 635mm (0 ~ 25)

Ratings

IP50

Output

Analog Voltage

Resistance Range

10 kOhms

Tip

Linear

Minimum Operating Temperature

- 18 C

Besleme Gerilimi

30V

Shaft Length

39.4mm

RoHS Durumu

RoHS Compliant

Cable Actuated Position Sensor Accuracyu2009 Of Fs

.25

Voltage Rating

30 V

Cable Actuated Position Sensor Product Typeu2009

SP Series, String Pots

Resistance Tolerance

±10%

Ambalaj

Box

Te Internal

SP1-25

Kılıf / Paket

Box with Connector

Seri

SP1
