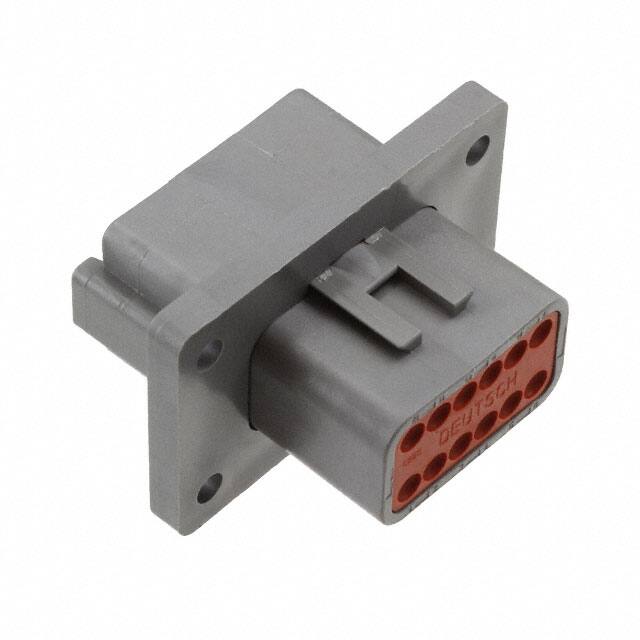

DT04-12PA-L012

Specifications

Housing Color

Grey

Total Number Of Contacts

12

Elv

Compliant

Parça Durumu

Active

Polarized

Yes

Pitch

4.445mm

Number Of Positionsu2009

12

Mating Pin Diameteru2009

1.59u2009mmu2009[u2009.063u2009inu2009]

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Renk

Gray

Iec Conformance

NO

Contact Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Centerline Pitchu2009

9.12u2009mmu2009[u2009.359u2009inu2009]

Mil Conformance

NO

Connector Type

Receptacle

Özellikler

IP68, IP6K9K, Mounting Flange

Empty Shell

NO

Operating Supply Voltage

250V

Seri

DT

Mixed Contacts

NO

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Note

Contacts Not Included

Yükseklik

45.92mm

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Maks. Çalışma Sıcaklığı

125°C

Hybrid Connector

No

Additional Feature

POLARIZED

Housing Material

Thermoplastic

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Montaj Tipi

Panel Mount

Pozisyon Sayısı

12

Uzunluk

55.12mm

Te Internal Description

REC, 12P, GRY, N, FLANGE, A

Te Internal

DT04-12PA-L012

Sıra Sayısı

2

Contact Termination

Crimp
