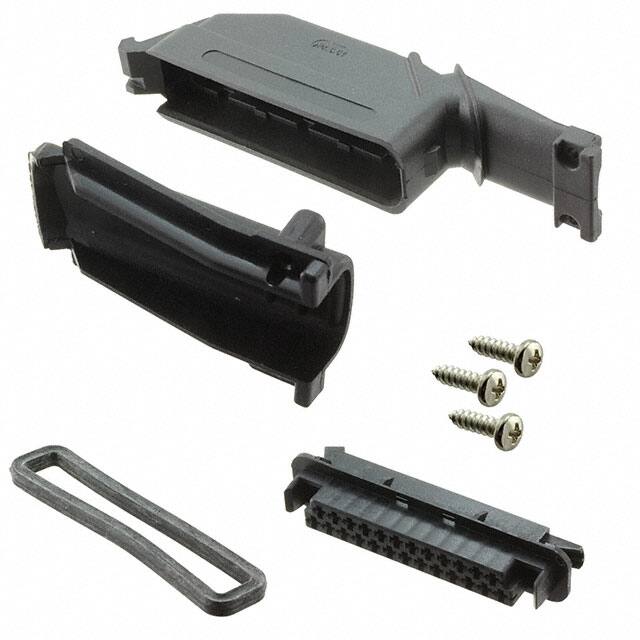

963317-1

Specifications

Orientation

Straight

Mil Conformance

NO

Connector Systemu2009

Wire-to-Wire

Montaj Tipi

Free Hanging (In-Line)

Din Conformance

NO

Iec Conformance

NO

Note

Contacts Not Included

Genişlik

29mm

Connector Housing Typeu2009

Housing for Female Terminals

Seri

Junior Power Timer

Özellikler

Sealed

Empty Shell

YES

Mating Tab Widthu2009

2.8u2009mmu2009[u2009.11u2009inu2009]

Yükseklik

150.2918mm

Option

GENERAL PURPOSE

Contact Termination

Crimp

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Te Internal

963317-1

Yayın Yılı

2008

Depth

42mm

Row Spacing

0.197 (5.00mm)

Pozisyon Sayısı

25

Polarized

Yes

RoHS Durumu

RoHS Compliant

Uzunluk

29.0068mm

Mating Tab Width

2.794mm

Montaj

Cable, Free Hanging

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Contact Type

Female Socket

Number Of Positionsu2009

25

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch

0.197 5.00mm

Mixed Contacts

NO

Ambalaj

Bulk

Housing Material

Polyamide

Hybrid Connector

No

Filter Feature

NO

Te Internal Description

25P JUN-TIM GEH KPL

Total Number Of Contacts

25
